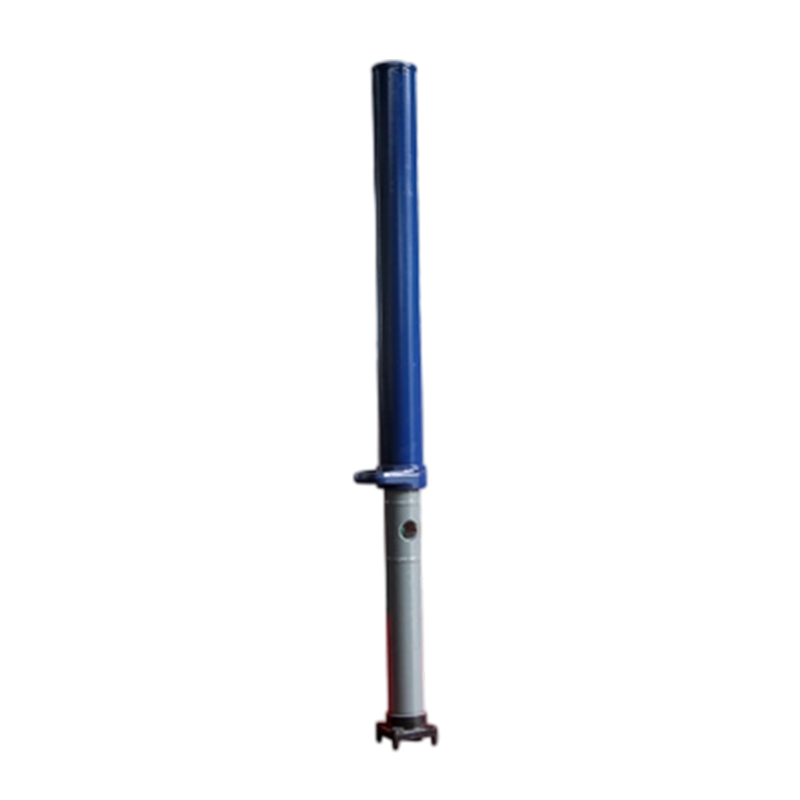

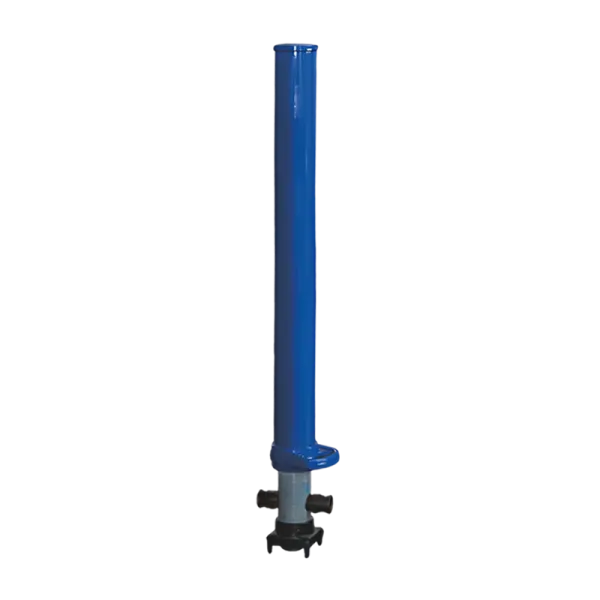

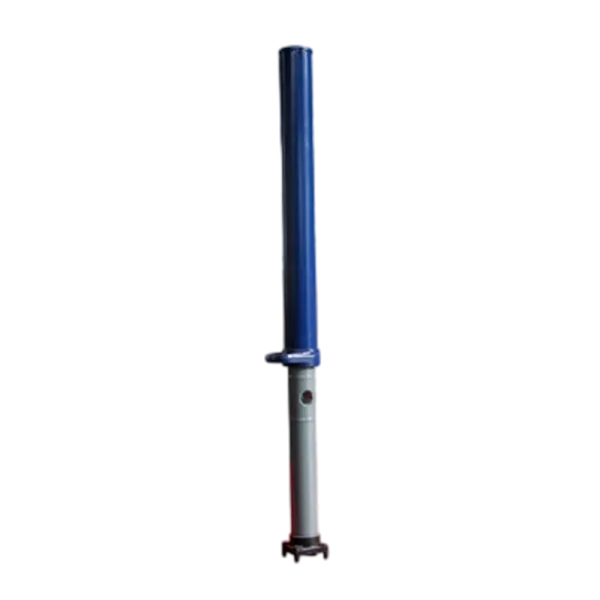

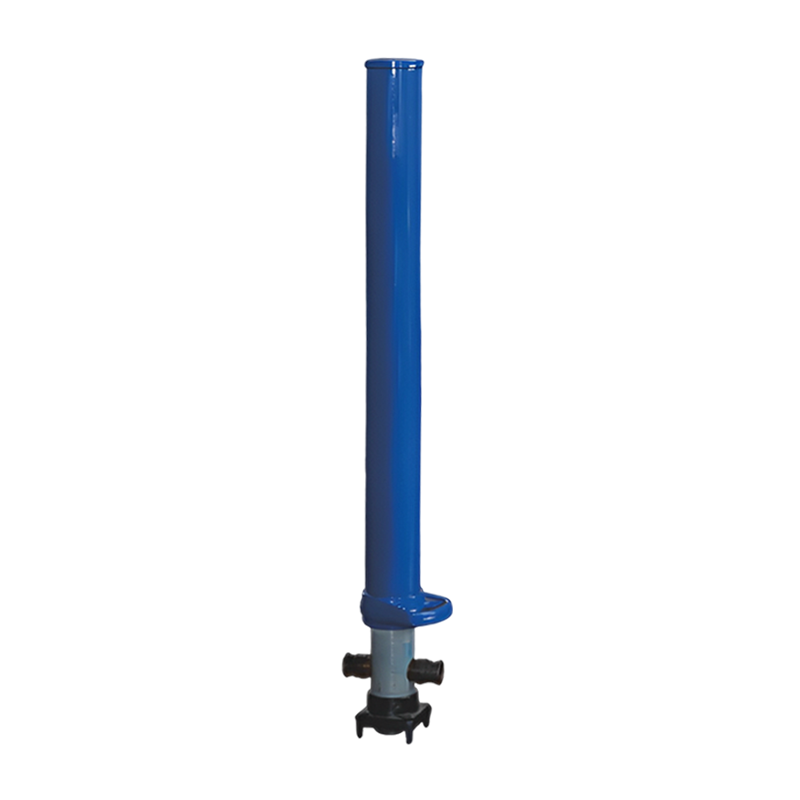

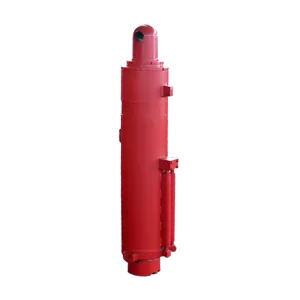

Suspension Type Hydraulic Prop for Coal Mines

The single unit suspended coal mine hydraulic support is the core equipment for underground roadway support in coal mines. It adopts a suspended structure design and actively supports the roof through hydraulic media. It utilizes the principle of balancing the suspension force between the piston and cylinder to eliminate the mechanical stress concentration problem of traditional pillars. It can adapt to changes in roof pressure in real time in scenarios such as coal mining and tunnel excavation, provide constant resistance support force, and ensure the safety of underground operations.

Product Details

Function

Active support of roof: providing stable support force through hydraulic system to suppress roof subsidence and rock deformation

Dynamic pressure adaptation

The suspended structure automatically compensates for pressure fluctuations on the top plate, achieving constant resistance and pressure support

Cylinder diameter

φ 100-160 mm

Stroke

800-3500 mm

Rated working pressure

30-45 MPa

Initial support force

120-250 kN

Maximum support force

300-600 kN

Working medium

emulsion (concentration 3% -5%), suitable for underground hydraulic systems in coal mines

Advantages and Characteristics

Suspension Type Hydraulic Prop for Coal Mines

The Jiaheng hydraulic prop is an individual hydraulic support unit for underground coal mine roof support. Its suspension-type structure uses hydraulic pressure to develop support force between the roof and floor. Selection depends on the required support height, working resistance, installation conditions and mine hydraulic supply.

This single hydraulic prop uses an emulsion-based working medium. Jiaheng provides specification review and customized hydraulic manufacturing support to help match the prop configuration to the project's approved roof support requirements.

● Suspension-type structure for individual roof support applications.

● Published stroke range: 800–3500 mm, depending on configuration.

● Published maximum support force range: 300–600 kN, depending on configuration.

● Emulsion supply and valve requirements reviewed against the mine hydraulic system.

Hydraulic Prop Technical Specifications

The following ranges are published for this product family. They do not represent one standard model or freely interchangeable combinations. Request a model-specific drawing and specification sheet before ordering.

ParameterPublished SpecificationSelection Note
Product typeSuspension type single hydraulic propConfirm the required structure and model designation
Cylinder diameter100–160 mmConfirm the diameter definition on the approved drawing
Stroke800–3500 mmStroke is travel, not the overall support height
Rated working pressure30–45 MPaConfirm the model rating separately from supply pressure
Initial support force120–250 kNConfirm the setting pressure and configuration used to achieve this force
Maximum support force300–600 kNRequest the model's rated working resistance and valve setting
Working mediumEmulsion, published concentration 3%–5%Confirm fluid formulation, water quality and seal compatibility

Coal Mine Roof Support Applications

A coal mine hydraulic prop provides an individual support point within an engineered roof support arrangement. Potential applications include working-face support and temporary roadway support, where the selected model is approved for the mine conditions.

The support plan must determine prop capacity, spacing, roof contact, floor bearing requirements and operating procedures. Product capacity alone does not establish the suitability of a complete support arrangement.

Working-Face Support

Selection starts with the operating height and specified working resistance. Roof movement, available withdrawal clearance and the approved support layout must be considered alongside the hydraulic prop dimensions.

Temporary Roadway Support

Temporary support requires a configuration suited to the opening height, roof contact arrangement and floor conditions. Confirm suitability with the mine's support design rather than selecting a prop by stroke alone.

Suspension Structure and Pressure-Controlled Yielding

Suspension-Type Load Transfer

The suspension structure manages how hydraulic force is transferred through the prop. Alignment, contact conditions and permitted eccentric loading remain important. Confirm the model-specific limits for inclination and offset loading before installation.

Yielding Under Roof Movement

The original product design includes a pressure relief arrangement intended to allow controlled yielding as roof load increases. Its performance depends on the approved valve setting, flow capacity and prop configuration.

Specify the required working resistance and yielding characteristics during technical review. Relief valve settings and operating limits must follow the approved model documentation.

Sealing and Corrosion Protection

Underground moisture, mine water and contamination influence sealing and surface protection requirements. State the working medium, water conditions and exposure environment so material, coating and seal compatibility can be reviewed.

How to Select a Single Hydraulic Prop

Provide the mine application and required operating envelope before choosing a model. The following information helps distinguish a suitable support unit from a prop that has sufficient nominal force but does not fit the installation.

● Minimum and maximum operating support height.

● Required initial setting force and rated working resistance.

● Available hydraulic supply pressure and fluid specification.

● Roof and floor contact requirements, including cap and base dimensions.

● Permitted inclination, eccentric loading and roof movement.

● Retracted height, handling weight and withdrawal clearance.

● Required mine approvals, inspection documents and acceptance criteria.

Support Height Versus Stroke

Stroke describes the prop's extension travel. Minimum height, maximum height and usable operating height must be taken from the model drawing. Leave the operating allowance required by the approved support design for roof movement and prop removal.

Supply Pressure Versus Working Pressure

Hydraulic supply pressure determines the setting conditions. Pressure inside the loaded prop may rise as roof load increases. Confirm the supply requirements, rated pressure and relief valve setting separately; they should not be treated as one interchangeable value.

Hydraulic Supply and Valve Compatibility

Confirm the emulsion supply, injection connection, unloading arrangement and valve specification before ordering. Connections must match the selected prop and mine system.

● Fluid formulation and concentration approved for the selected seals.

● Supply pressure, hose rating and connection type.

● Valve operating functions, settings and required flow performance.

● Inspection, cleaning and maintenance requirements.

Use the specified working medium. Do not substitute mineral hydraulic oil for an emulsion system without written confirmation of compatibility.

Jiaheng Manufacturing and Customization

Hubei Jiaheng Technology Co., Ltd. has manufactured hydraulic cylinders since 2001. Its published company profile lists a 176,900 m² plant, 82 R&D engineers and annual capacity of 210,000 hydraulic cylinders across its product portfolio.

Jiaheng's custom hydraulic manufacturing services include structural design, material selection and performance verification. For a hydraulic prop enquiry, customization feasibility must be reviewed together with the required mine approvals and model-specific operating limits.

Learn more about Jiaheng's hydraulic manufacturing capabilities.

Quality Documents and Order Requirements

Agree on the technical specification and acceptance documents before production. Buyers should identify the approvals required for the destination mine and confirm that they cover the exact model being ordered.

● Model-specific drawing and dimensional specification.

● Rated working resistance, pressure limits and valve settings.

● Required pressure, leakage and functional test records.

● Material and traceability documents where specified.

● Operating instructions, maintenance information and spare parts list.

● Applicable mine approval documents for customer verification.

Minimum order quantity, production lead time, packaging and spare parts availability are confirmed according to the approved configuration and order quantity.

Frequently Asked Questions

What is a hydraulic prop used for?

A hydraulic prop provides an individual load-bearing support point, commonly for underground mine roof support. The selected unit must form part of a support arrangement approved for the actual roof and floor conditions.

Is this a complete powered roof support?

No. This page covers an individual suspension type hydraulic prop. A complete powered roof support is a larger assembly with its own structural components, hydraulic functions and selection requirements.

Does the stroke specify the maximum support height?

No. Stroke is the extension travel. Request the minimum and maximum overall heights, together with the approved operating range, for the selected model.

Can I select any pressure and support force within the listed ranges?

No. Diameter, effective hydraulic area, pressure and structural capacity are related. The listed ranges cover different configurations. Use the model-specific specification rather than combining range limits.

What information is needed for a quotation?

Provide the required support height, working resistance, supply pressure, working medium, installation conditions and quantity. Include the existing model or drawing for replacement enquiries and identify the mine approvals required.

Request a Hydraulic Prop Quotation

Send Jiaheng your technical requirements for a model and configuration review. Include the following details so the quotation addresses both operating conditions and procurement requirements.

● Mine location and intended support application.

● Required minimum and maximum operating height.

● Initial setting force and rated working resistance.

● Hydraulic supply pressure, fluid and connection details.

● Drawing or existing model information, where available.

● Required approvals, quantity, spare parts and delivery date.
