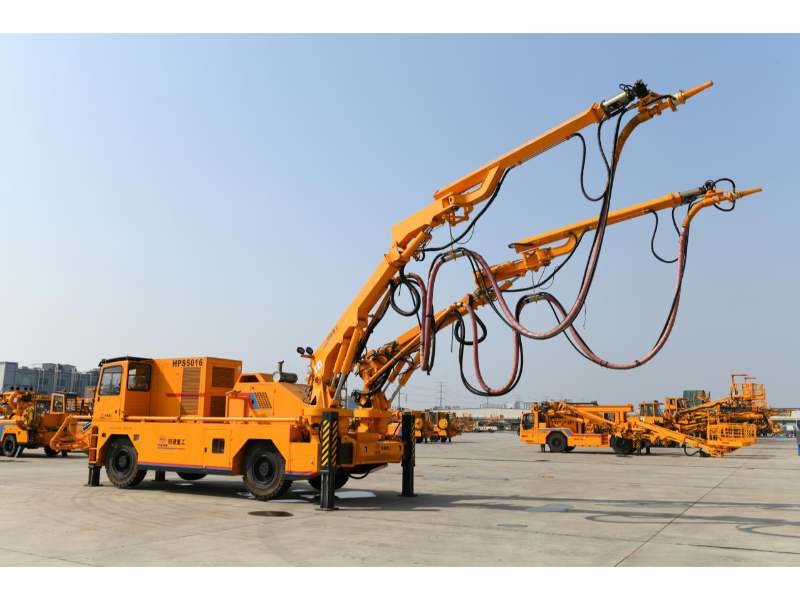

Application of Core Hydraulic Cylinder in Wet Spray Machine Equipment

1. Double acting piston oil cylinder

Function: Mainly used in pumping systems, it drives the piston in both directions through hydraulic oil, providing sufficient thrust to transport high viscosity concrete slurry and ensuring stable pumping pressure.

2. Swing oil cylinder

Function: Installed at the connection part of the nozzle, it drives the nozzle to achieve multi angle adjustment through the reciprocating swing or rotation of the oil cylinder, meeting the spraying direction requirements during construction.

3. Multi stage telescopic oil cylinder

Function: Used for equipment support systems, it can flexibly expand and contract according to the height of the ground, quickly adjust the position of the machine body, and adapt to the support needs of different construction environments.

1. High sealing design

In response to the characteristic of easy leakage of concrete slurry, high-strength seals and precision machined cylinder barrels are used to prevent slurry from infiltrating into the oil cylinder, avoiding hydraulic system pollution and efficiency decline, while ensuring a clean construction environment.

2. Wear resistant and corrosion-resistant materials

The inner wall of the cylinder may be treated with chrome plating or quenching to enhance surface hardness and resist wear from concrete particles; The surface of the piston rod is plated with hard chromium to prevent corrosion of the slurry and extend the service life of the oil cylinder.

3. High voltage adaptability

The wet spraying machine has a high pumping pressure, and the oil cylinder design can withstand a working pressure of over 20MPa, ensuring stable operation under high pressure conditions and meeting the spraying requirements for long-distance and high head in tunnel construction.

4. Precise control performance

Combined with the proportional valve or servo valve control of the hydraulic system, the oil cylinder has a sensitive response and can accurately adjust the nozzle swing speed and pumping volume, achieving uniform control of concrete spraying thickness and improving construction quality.
