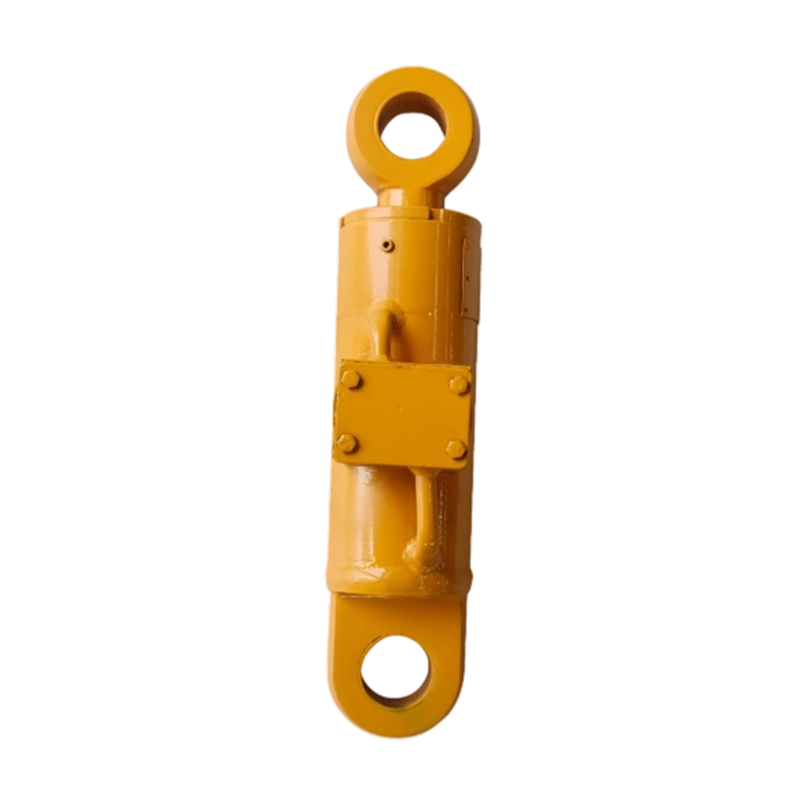

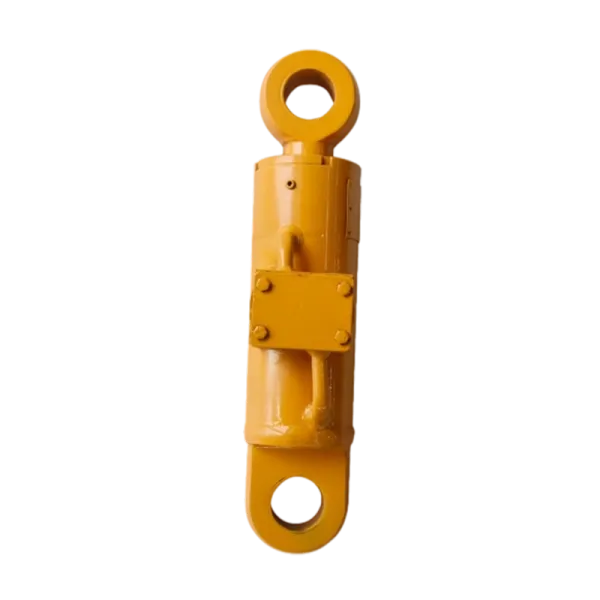

Anchor Excavator Telescopic Hydraulic Cylinder

The telescopic oil cylinder of the anchor digging machine is the core hydraulic actuator of the coal mine anchor digging integrated cutting system. It achieves the telescopic action of the cutting arm through hydraulic drive, accurately controls the forward/backward distance of the cutting head (usually within the operating range of 0.8-5 meters), and adapts to the cutting needs of different tunnel section sizes and rock hardness, ensuring the efficiency and stability of the anchor digging machine in coal tunnel excavation and anchor support operations.

Next Product Inquire Now

Product Details

Function

The core hydraulic execution unit that drives the cutting arm to complete the telescopic movement, realizing the adjustment of tunnel cutting depth and attitude control

Cylinder diameter

60-160 mm

Stroke

80-2000 mm

Thrust

150KN-2500KN

Rod diameter

35-110 mm

Work pressure

25-35 MPa

Advantages and Characteristics

Adaptability to high dust environments:

The sealing system adopts a polyurethane+metal skeleton composite structure, combined with a cylinder head labyrinth dustproof ring (dustproof level IP68), which can effectively block coal dust intrusion and maintain sealing performance in environments with dust concentration ≥ 1000mg/m ³;

The surface of the piston rod is coated with a ceramic coating (thickness 0.3-0.5mm, hardness ≥ HV1200) by supersonic plasma spraying, which improves the wear resistance by three times compared to traditional chrome plating and is suitable for high-frequency expansion and contraction operations during coal and rock cutting.

Explosion proof safety system:

The entire series has passed MA coal mine safety certification, and the hydraulic system uses flame-retardant hydraulic oil. The surface of the oil cylinder has undergone anti-static treatment (surface resistance ≤ 1 × 10 ΩΩ) to eliminate the risk of friction sparks;

Built in explosion-proof balance valve+dual liquid control lock, with a locking error of ≤ 1.5mm for the cutting arm in case of sudden pressure loss, to prevent the cutting head from falling; The cylinder head is equipped with an overpressure protection device (with an opening pressure of 1.3 times the rated pressure), which is suitable for underground explosion-proof requirements.

Compact structural design:

Adopting a compact single cylinder double acting layout, the installation space is reduced by 40% compared to traditional double cylinder solutions, making it suitable for the narrow underground working space of anchor excavators;

Weight reduction of 25% compared to the same parameter oil cylinder (such as a cylinder with a diameter of 120mm and a weight of ≤ 85kg), reducing the overall load of the machine and improving mobility.
