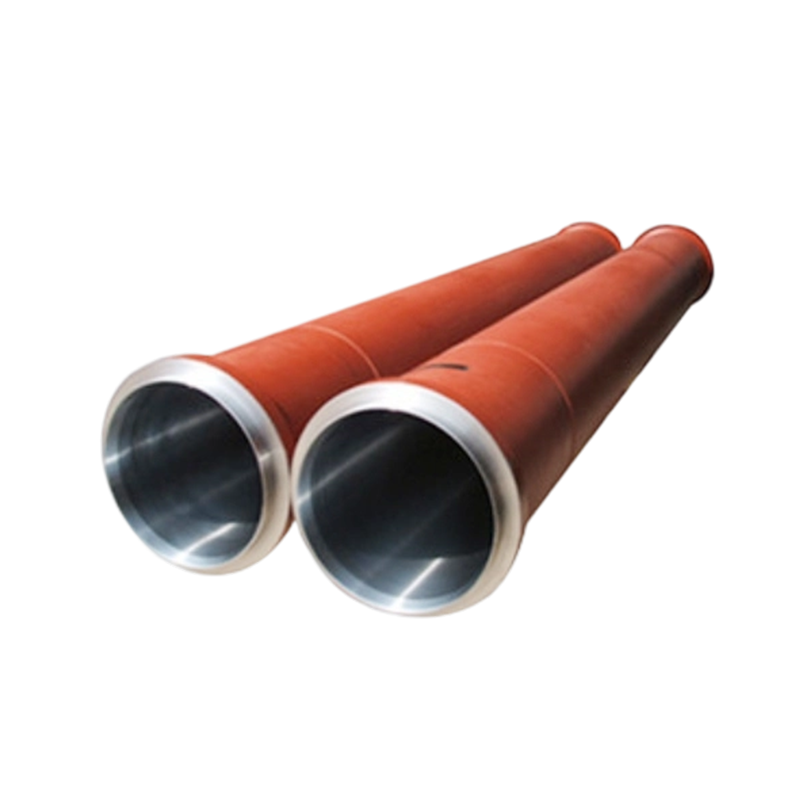

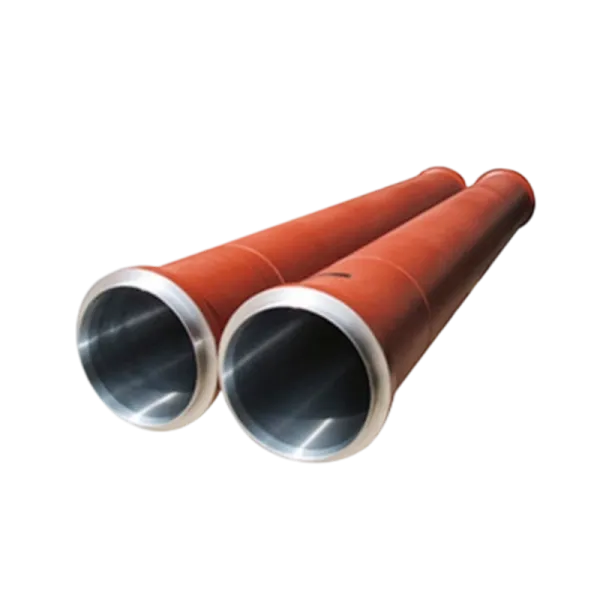

At Jiaheng Hydraulic, we manufacture high-performance concrete pump cylinders engineered for demanding construction environments and continuous heavy-duty operation. Our hydraulic cylinders are designed with precision-machined cylinder tubes, high-strength piston rods, wear-resistant sealing systems, and advanced surface treatments to ensure long service life and stable hydraulic performance.
Our concrete pump hydraulic cylinders are widely used in:
Advantages and Characteristics
Double acting oil cylinder: There is pressure oil acting on both sides of the piston, achieving bidirectional drive (push and return).
Long stroke: The stroke is usually matched with the length of the conveying cylinder to ensure that the concrete piston can complete the pushing of the entire conveying cylinder.
High thrust/tension: It is necessary to overcome the huge frictional resistance of concrete in the pipeline.
High reliability&long lifespan: capable of withstanding high pressure, high-frequency reciprocating motion, and impact loads, requiring reliable sealing, wear resistance, and pollution resistance.
Buffer design: Buffer structures are usually designed at both ends of the stroke to reduce directional impact.
Connection method: The cylinder bottom is usually connected to the fixed structure of the pump truck through an ear shaft or pin shaft, and the piston rod end is connected to the concrete piston connection plate through a ball head or pin shaft.
Applications of Concrete Pump Hydraulic Cylinders
Our concrete pump cylinders are widely used in various hydraulic conveying and construction equipment applications, including:
Concrete Pump Trucks
Used for stable concrete delivery and reciprocating hydraulic movement in boom pump systems.
Trailer Concrete Pumps
Provide efficient hydraulic conveying performance for mobile pumping equipment.
Tunnel Construction Equipment
Suitable for high-pressure concrete conveying operations in underground engineering projects.
Infrastructure & Construction Projects
Widely applied in bridges, highways, high-rise buildings, and large-scale infrastructure construction.
Industrial Hydraulic Conveying Systems
Used in material transport systems requiring stable reciprocating hydraulic motion.
Professional Hydraulic Solutions for Concrete Pump Systems
Concrete pump cylinders operate under high-frequency reciprocating motion and extreme pressure conditions. Therefore, cylinder durability, sealing reliability, and hydraulic stability are critical factors affecting the performance of the entire pumping system.
Our hydraulic conveying cylinders are engineered to deliver:
With advanced manufacturing equipment and strict quality inspection procedures, Jiaheng Hydraulic provides dependable hydraulic cylinder solutions for global construction machinery manufacturers and concrete pump equipment suppliers.
OEM Concrete Pump Cylinder Manufacturer
We provide OEM and custom hydraulic cylinder solutions for:
Concrete pump manufacturers
Construction equipment companies
Hydraulic system integrators
Machinery distributors
Engineering contractors
Our engineering team supports customized hydraulic solutions based on customer drawings, technical specifications, and application requirements.
Our factory integrates advanced hydraulic cylinder manufacturing technologies, including:
CNC machining centers
Automatic welding systems
Cylinder honing equipment
Rod chrome plating
Hydraulic pressure testing
Sealing inspection
Dimensional quality control
Each concrete pump cylinder undergoes strict hydraulic performance testing before delivery to ensure stable operation and product reliability.
