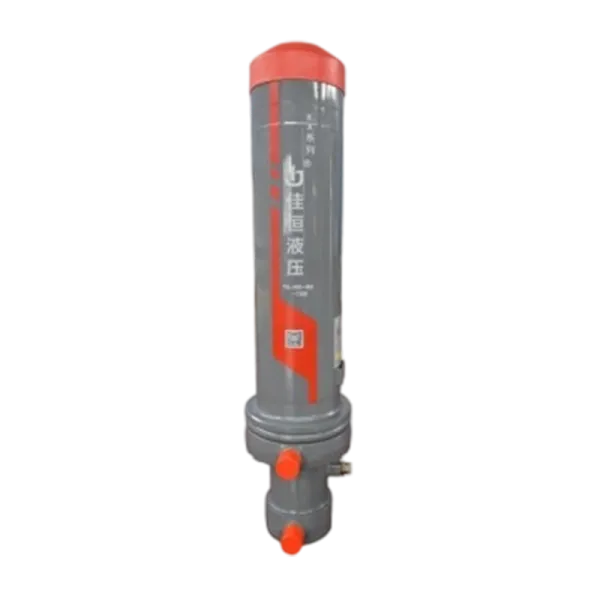

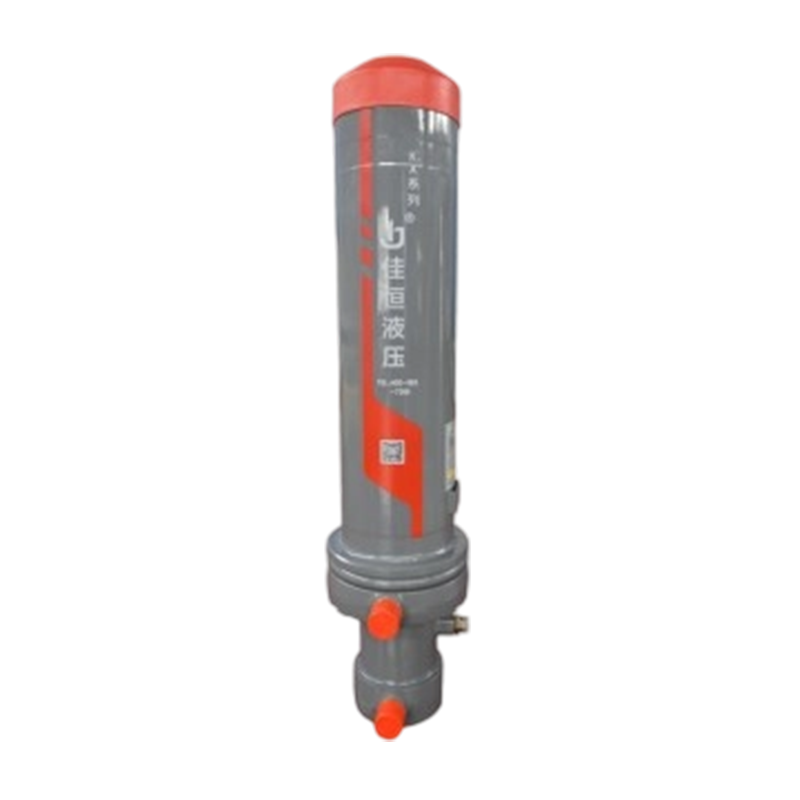

FC(Q series) Front End Cylinders - Light-duty Dump Truck

Jiaheng Q series dump light-duty truck cylinders are mainly used for light-duty dump trucks (light trucks), small engineering vehicles, etc., to achieve automatic lifting and tilting unloading functions of the cargo box. Designed specifically for light trucks, with a compact structure, it meets the needs of lightweight vehicles. The products cover four major series: TG118/TG129/TG137/TG149, providing a variety of models to choose from. With high reliability and durability, it is suitable for frequent lifting operations. Relying on the company's mature hydraulic cylinder technology platform, combined with the actual working conditions of light trucks to optimize the design.

Next Product Inquire Now

Product Details

Function

automatic lifting and tilting unloading of the cargo box

Specifications

cylinder barrel diameter 118mm~149mm

Stroke ≤ 4650mm

Suitable for truck body lengths of 3000-6400mm

Thrust

Maximum 350KN

Description

Dump Truck Lightweight Cylinders are advanced hydraulic lifting cylinders designed to reduce vehicle weight while maintaining high lifting power and durability. These cylinders are widely used in dump trucks, mining trucks, construction vehicles, and heavy-duty transport equipment.

Manufactured with high-strength alloy steel and optimized structural design, lightweight dump truck cylinders help improve fuel efficiency, increase payload capacity, and enhance overall vehicle performance.

Our cylinders are engineered to deliver smooth lifting performance, high load capacity, and long service life, making them ideal for demanding construction and mining operations.
