Hydrogen Booster Hydraulic Cylinder

Hubei Jiaheng Hydrogen Booster Hydraulic Cylinder is a high-performance hydraulic actuator specially developed for the core links of the hydrogen energy industry chain. With precise parameter design, novel and reliable sealing structure and high-quality material selection, this hydraulic cylinder can stably realize the hydrogen boosting function. The hydraulic component can effectively ensure the safety and efficiency of hydrogen storage, transportation and hydrogen refueling station hydrogen storage tank boosting and other links, and is a key supporting equipment for the high-quality development of the hydrogen energy industry.


Product Details

cylinder bore

150mm

rod diameter

56mm

the stroke

250mm

Hydrogen Booster Hydraulic Cylinder

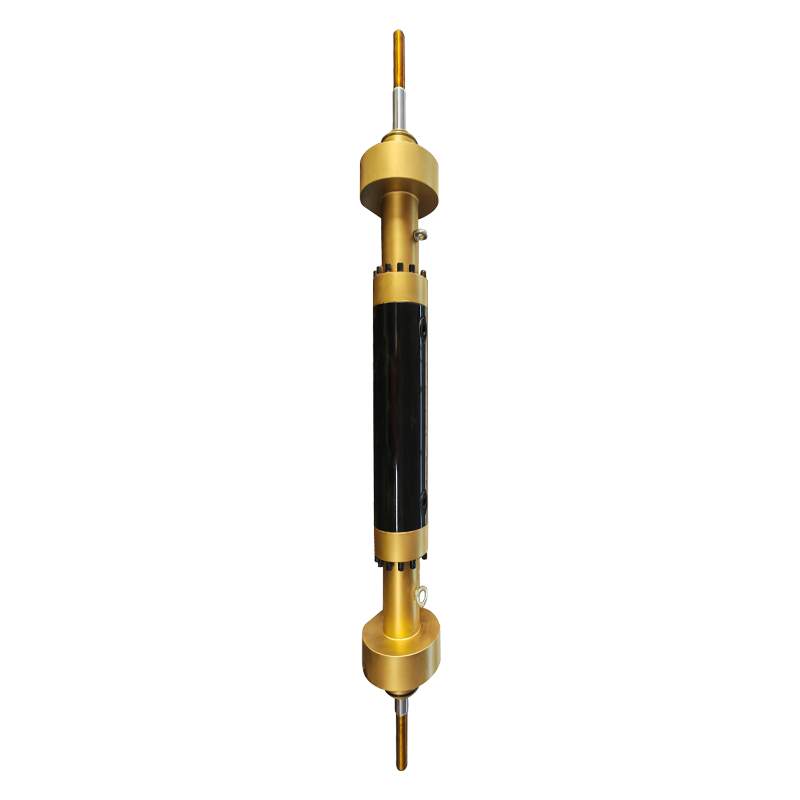

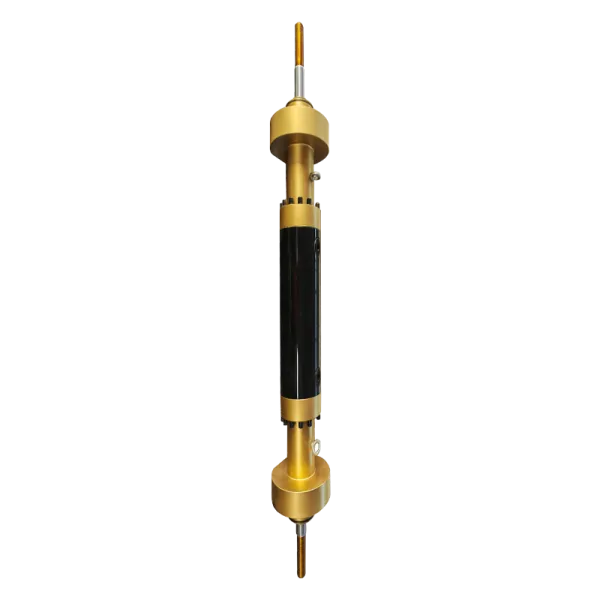

The Jiaheng hydrogen booster hydraulic cylinder is a reciprocating hydraulic actuator for hydrogen boosting equipment. The published configuration has a 150 mm bore, 56 mm rod diameter and 250 mm stroke, with multiple rod oil scrapers and separate oil drainage channels.

For equipment manufacturers selecting a hydraulic cylinder for a hydrogen compressor, dimensional fit is only the starting point. Drive force, operating speed, alignment, oil management and the connection to the compression mechanism must be reviewed together.

Check the Cylinder Against Your Equipment Requirements

Your RequirementConfiguration to ReviewWhy It Matters
Installation designed around a 150 mm bore and 250 mm strokeThe published cylinder configuration, subject to drawing approvalMounts, rod connection and ports must also match
Reduced oil carryover toward the compression assemblyMultiple oil scrapers and separate drainage channelsDrain routing and the complete separation arrangement affect performance
Repeated reciprocating operationSeals, guidance and cushioning matched to the duty cycleSpeed, pressure, temperature and reversal conditions affect wear
Different mounting space or connection geometryA custom configuration reviewed against the equipment drawingPrevents dimensional compatibility from being assumed from bore and stroke alone

Technical Specifications

ParameterPublished Configuration
Cylinder bore150 mm
Rod diameter56 mm
Stroke250 mm
Cylinder body material27SiMn steel
Body heat treatmentQuenched and tempered
Piston rod treatmentChrome plated
Rod oil managementMultiple oil scrapers with separate oil drainage channels

Working pressure, mounting dimensions, port details and operating limits are confirmed in the project specification. These hydraulic cylinder dimensions do not define the hydrogen discharge pressure or gas flow rate of the complete booster.

Oil Management and Reciprocating Performance

Multiple Oil Scrapers and Separate Drainage

The rod sealing area combines multiple oil scrapers with dedicated drainage passages to manage oil carried on the rod surface. This arrangement is intended to reduce oil migration toward the connected compression assembly.

Drain connections should be accessible and routed according to the approved equipment design. Gas cleanliness must be verified at system level; the cylinder's scraper arrangement alone does not establish a hydrogen purity rating.

Seals Selected for Repeated Cycling

Reciprocating service requires seals and guide elements suited to pressure, rod speed, hydraulic fluid and temperature. Provide both the cycle rate and movement profile, including acceleration, dwell time and reversal behaviour, for an appropriate review.

Heat-Treated Body and Chrome-Plated Rod

The published design uses a quenched-and-tempered 27SiMn steel body and chrome-plated piston rod. Material condition, rod finish and alignment should be considered together with loading and seal requirements.

Compact Layout and Maintenance Access

The compact cylinder arrangement supports integration into equipment assemblies. Leave sufficient access for mounting hardware, hydraulic fittings, drain inspection and seal servicing when designing the surrounding frame.

Hydrogen Compressor Drive Integration

A hydraulic drive cylinder for a hydrogen compressor must match the mechanical load and the hydraulic supply. Confirm how the rod connects to the compression mechanism and how the assembly maintains alignment throughout the stroke.

● Required extension and retraction force throughout the operating cycle.

● Normal and maximum hydraulic pressure, including reversal transients.

● Available flow, required travel speed and duty cycle.

● Rod connection, mounting references and permitted alignment tolerances.

● Oil drainage routing and separation from the gas compression assembly.

● Hydraulic fluid, operating temperature and required feedback signals.

Identify any surfaces that may contact hydrogen and provide the relevant material and sealing requirements. Suitability for hydrogen contact must be reviewed for those components rather than assumed from the hydraulic cylinder's application name.

Custom Hydrogen Booster Hydraulic Cylinder Services

Jiaheng's custom hydraulic cylinder solutions cover structural dimensions, mounting arrangements, surface treatment and sealing requirements. Send the equipment drawing so customization can be assessed against the operating conditions.

For replacement enquiries, include the original cylinder drawing, part number and photographs of the connection interfaces. Describe any leakage, overheating, rod wear or drain issues so the review addresses operating conditions as well as dimensional fit.

Hubei Jiaheng Technology Co., Ltd. has manufactured hydraulic cylinders since 2001. Learn more about Jiaheng hydraulic cylinder manufacturing or review our broader hydraulic cylinder product range.

Inspection and Procurement Requirements

Agree on the drawing revision and acceptance criteria before production. The inspection scope should reflect the hydraulic drive function and the equipment manufacturer's integration requirements.

● Bore, rod, stroke, mounting and connection dimensions.

● Pressure integrity and agreed internal and external leakage limits.

● Reciprocating operation under the specified speed, load and temperature.

● Scraper and drain performance under defined test conditions.

● Required material records, inspection reports and maintenance information.

Minimum order quantity, prototype arrangements, lead time, warranty terms and spare seal availability are confirmed with the approved specification and quotation.

Frequently Asked Questions

Q1: What does this product specification cover?

This page describes the hydraulic actuator and its oil-management features. Confirm the quotation's supply scope for gas compression components, valves, instrumentation and the hydraulic power unit.

Q2: Can the cylinder dimensions determine hydrogen outlet pressure?

No. Gas outlet pressure depends on the complete compressor design, effective drive and compression areas, hydraulic pressure and operating losses. The hydraulic cylinder dimensions alone are insufficient.

Q3: Does the scraper structure guarantee oil-free hydrogen?

The scraper and drain arrangement manages rod-carried oil. Any oil-free or gas purity requirement must be defined and verified for the complete compression system.

Q4: How should the reciprocating rate be specified?

State whether the value represents complete extension-and-retraction cycles or individual strokes. Include travel speed, pressure, load, dwell time and continuous operating duration.

Q5: Can installation dimensions be customized?

Submit the mounting drawing, rod connection, port positions and available space for review. Feasibility and the final configuration are confirmed before production.

Request a Cylinder Specification Review

Send Jiaheng your equipment drawing and operating requirements to receive a configuration review and quotation.

● Bore, rod diameter, stroke and installation drawing.

● Required force, hydraulic pressure and available flow.

● Cycle rate, temperature, fluid and operating duration.

● Rod connection, oil ports and drainage arrangement.

● Required supply scope, inspection documents, quantity and delivery date.

     Request a Quote
