Medium-duty Dump Truck Tipping Cylinder

Product Categories

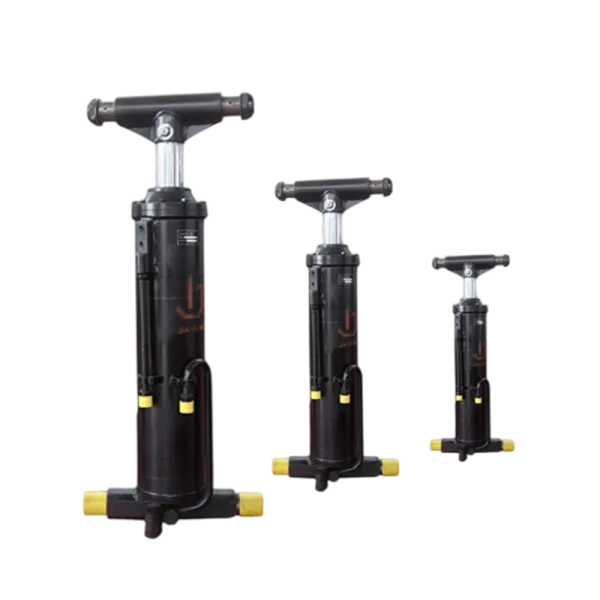

Underbody Hydraulic Cylinder HG Series

Jiaheng under body cylinder is a hydraulic cylinder specially designed for heavy-load horizontal jacking, bridge jacking and other projects, with high stability and high thrust as its core advantages.

Product Details

Function

Designed for heavy-load horizontal pushing and vertical lifting conversion.

Specifications

Extended cylinder diameter 120mm~200mm

HG Series Underbody Tipping Cylinder for Dump Trucks

The Jiaheng HG series underbody tipping cylinder is designed for installation beneath a dump truck body, where hydraulic thrust operates the lifting mechanism. This arrangement keeps the cylinder within the underbody space and allows the hoist structure to transfer cylinder movement into body elevation.

For medium-duty dump truck projects, cylinder selection must account for the lifting frame, body dimensions, load distribution and available installation space. Jiaheng provides application-specific cylinder review to match the hydraulic actuator with the vehicle's approved hoist design.

● Underbody installation for dump truck tipping mechanisms.

● Cylinder and lifting-frame geometry reviewed together.

● Mounting dimensions, stroke and hydraulic connections specified for the project.

● Suitable for OEM enquiries and technically verified replacement projects.

Is an Underbody Tipping Cylinder Right for Your Truck?

An underbody cylinder should be selected as part of the complete tipping mechanism. Start with the vehicle layout and required body movement, then verify the cylinder dimensions and force throughout the lifting cycle.

Your ApplicationConfiguration to ReviewInformation Needed
New medium-duty dump truck with an underbody hoistHG cylinder matched to the lifting-frame geometryHoist drawing, body dimensions, load and tipping angle
Limited space beneath the lowered bodyInstallation length, cylinder envelope and port orientationChassis clearances and mounting positions throughout travel
Replacement of an existing underbody cylinderDimensionally and hydraulically matched replacementOriginal drawing, part number, mounting dimensions and pressure
Changed body length, load or lifting frameA new force and geometry assessmentRevised body and hoist drawings, centre of gravity and operating requirements

HG Series Cylinder and Hoist Matching

Installation Beneath the Body

The cylinder must fit within the space available between the chassis and body structure. Check clearance with the body lowered and throughout the full tipping movement, including access to hoses, fittings and mounting pins.

Force Through the Lifting Mechanism

Cylinder thrust acts through the lifting frame and body pivots. The force required changes with the mechanism angle and load position. Initial breakaway from the lowered position is an important design condition and should be assessed using the actual hoist geometry.

Stroke and Tipping Angle

Cylinder stroke and final tipping angle are linked by the lifting mechanism. A longer stroke does not automatically provide a suitable installation. Verify the complete movement to avoid interference, overtravel or loading against mechanical stops.

Technical Information for Specification Review

HG series configurations should be confirmed against a model-specific drawing. The product information lists a diameter range of 120–200 mm; the applicable diameter reference and available sizes must be confirmed during technical review.

SpecificationRequired Confirmation
SeriesHG underbody tipping cylinder
DiameterPublished range: 120–200 mm; confirm the dimension definition and selected model
Bore and rod diameterSelected according to force, pressure, stroke and structural requirements
Stroke and installation lengthMatched to the approved hoist drawing and tipping movement
Working pressure and thrustModel-specific values to be confirmed; cylinder thrust is not the truck payload rating
Mounting connectionsPin dimensions, connection widths, bearings and articulation requirements
Hydraulic connectionsPort thread, orientation, hose clearance and circuit compatibility
Cylinder action and returnConfirm the selected model and the vehicle's lowering circuit

Design Features for Dump Truck Operation

Load-Bearing Structure

Jiaheng's HG product information describes an alloy-steel cylinder structure for demanding loading conditions. Final material selection, rod size and mounting design should be agreed according to the required force and operating cycle.

Rod Surface Protection

Hard chrome surface treatment helps protect the working rod surface against wear and corrosion. Specify exposure to road spray, moisture and abrasive material when reviewing the coating and sealing requirements.

Alignment and Load Control

Correct pin alignment and sufficient articulation help limit side loading. Lowering control and load holding depend on the complete hydraulic circuit and any specified valves. Confirm these functions with the vehicle's hydraulic design.

OEM and Replacement Cylinder Support

Jiaheng's custom hydraulic cylinder services cover structural dimensions, mounting arrangements, surface treatments and sealing requirements. For an underbody installation, the cylinder and hoist must be reviewed together.

● New vehicle projects: provide the body, chassis and lifting-frame drawings.

● Replacement projects: provide the original cylinder drawing or verified measurements.

● Modified installations: identify changes to load, body length, pivots or mounting positions.

● Inspection requirements: agree on dimensions, pressure tests and acceptance documents before production.

Hubei Jiaheng Technology Co., Ltd. has manufactured hydraulic cylinders since 2001. For more information about the company, visit Jiaheng Hydraulic.

Frequently Asked Questions

Q1: Can I choose the cylinder by truck payload alone?

No. Required cylinder force depends on body weight, payload distribution, pivot positions and lifting-frame geometry. The same payload can require different cylinders in different installations.

Q2: Is an underbody cylinder interchangeable with a front-end cylinder?

They use different installation arrangements and lifting geometry. Conversion requires a complete hoist and vehicle assessment, rather than a cylinder-only replacement.

Q3: What is needed to confirm a replacement?

Provide bore and rod dimensions, stroke, closed and extended mounting lengths, pin sizes, connection widths, port details and working pressure. Include photographs of the installed cylinder and lifting frame.

Q4: What are the minimum order quantity and lead time?

Order conditions depend on the approved model, customization requirements and quantity. Include the destination and required delivery date so Jiaheng can confirm availability and production arrangements in the quotation.

Request an HG Underbody Cylinder Quote

Send your vehicle and hoist specifications to Jiaheng for review. Include the following information to help establish the required cylinder configuration.

● Truck model, body dimensions and intended load.

● Lifting-frame drawing and cylinder mounting positions.

● Required stroke, tipping angle and installation dimensions.

● Working pressure, available flow and hydraulic circuit details.

● Quantity, destination and required delivery date.
