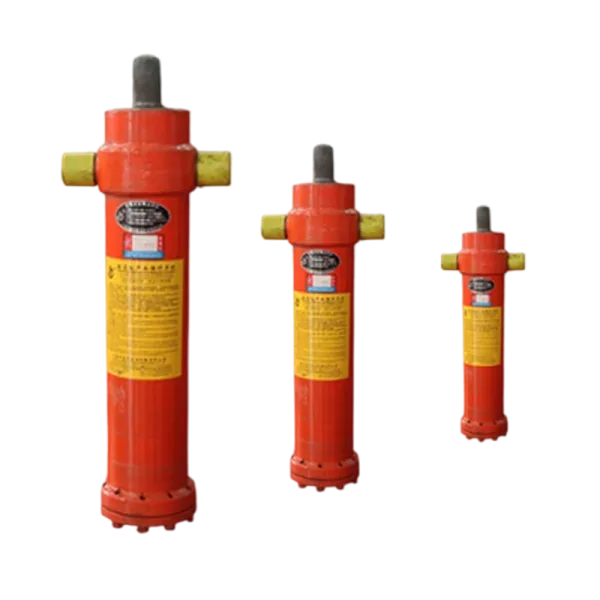

Belly Lift With Flange TG110 Series

Jiaheng's TG110 series of under body cylinders with Flange are high-performance hydraulic cylinders designed for heavy-load lifting, horizontal jacking, bridge construction, equipment installation and other engineering needs. This series adopts a flange installation structure, with the characteristics of large thrust, high stability, and long life, and is suitable for industrial application scenarios that require high precision and high load.

Inquire Now

Product Details

Function

Heavy-load lifting and pushing, with synchronous control system to achieve multi-cylinder linkage.

Specifications

Extended cylinder diameter 110mm~300mm

Stroke ≤ 500mm

Thrust

Maximum 1000KN

Features

1. Flange installation design

Front-end flange connection: convenient for direct fixing on the supporting structure, improving force transmission efficiency, and can be adapted to a variety of engineering machinery.

2. High load capacity

With the advantages of high load, high precision, and long life, it is widely used in bridges, tunnels, heavy equipment installation and other fields.

3. High-precision control

Synchronous control: supports multi-cylinder linkage, displacement error ≤±1mm, suitable for precision engineering such as bridge jacking and shield machine propulsion.

4. Durability and reliability

The cylinder body is made of good material, high compressive strength, and strong environmental resistance: adaptable to temperature -30℃~+120℃, and corrosion-resistant version is optional (such as coastal and chemical environments).
