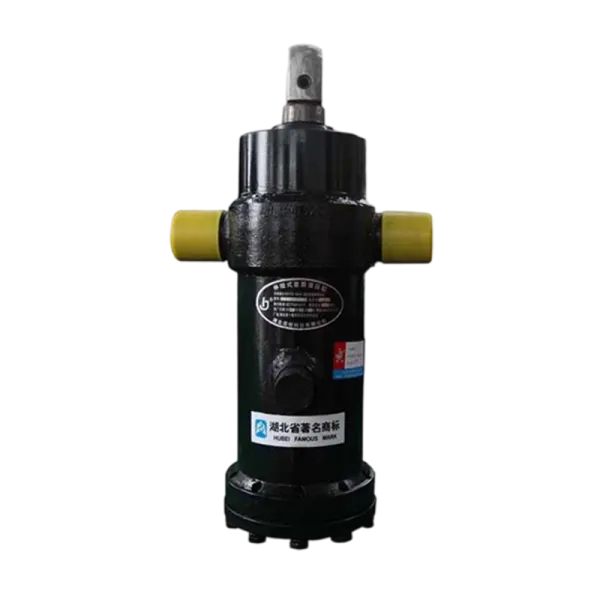

The TG110 Series Small Sleeve Cylinders are compact hydraulic actuators designed for applications where installation space is limited but reliable hydraulic power is required. These small sleeve hydraulic cylinders are widely used in industrial machinery, automation equipment, agricultural machinery, and construction equipment.
Manufactured using high-strength steel and precision machining technology, the TG110 series provides excellent durability, stable performance, and long service life under high pressure operating conditions.
As an experienced small sleeve cylinders manufacturer, we provide OEM and custom solutions to meet the diverse requirements of global equipment manufacturers and hydraulic distributors.
Small Sleeve Hydraulic Cylinders for Limited Installation Space
Small sleeve cylinders are widely used in hydraulic systems where a standard large cylinder cannot be easily installed. With a compact structure and multi-stage telescopic design, the cylinder can provide a long working stroke within a limited mounting space.
This makes small sleeve hydraulic cylinders suitable for side-tilting dump trucks, mining wide-body vehicles, engineering vehicles and other heavy-duty equipment that need efficient lifting performance in a compact layout.
Key Features of Jiaheng Small Sleeve Cylinders
1. Compact design
Lightweight structure and small size, suitable for installation environments with limited space. It adopts a multi-stage sleeve structure, with a short length after contraction and a large extension stroke.
2. High-pressure performance
The working pressure range is wide and can adapt to high-intensity load requirements. The sealing performance is excellent and wear-resistant seals are used to reduce the risk of leakage.
3. Material and technology
The cylinder body is made of high-strength alloy steel, which is precision machined and heat-treated, and is corrosion-resistant and impact-resistant. The surface is hard chrome-plated to improve wear resistance and service life.
4. Intelligent adaptation & easy maintenance
Key components of the oil cylinder (such as seal group and guide sleeve) adopt standardized design, which supports quick replacement and reduces downtime. It provides a variety of installation methods to match different brands of mining vehicles.
Applications of Small Sleeve Hydraulic Cylinders
The compact sleeve cylinders are widely used in various industries.
1. Industrial Machinery
Used in:
Suitable for:
Commonly used in:
agricultural implements
planting machinery
harvesting equipment
4. Automation Systems
Due to their compact design and precise motion control, miniature sleeve hydraulic cylinders are widely integrated into automated machinery.
Small Sleeve Cylinders for Dump Trucks
Small sleeve cylinders are commonly used in dump truck lifting systems where strong lifting force and compact installation are required. The telescopic sleeve structure helps the dump body achieve stable lifting and tipping while reducing the space needed for cylinder installation.
For dump trucks working in mining, construction, transportation and heavy-load environments, a durable small sleeve hydraulic cylinder can improve lifting reliability and reduce maintenance risks.
Custom Small Sleeve Cylinder Solutions
Jiaheng provides custom small sleeve cylinder solutions for vehicle manufacturers, hydraulic system suppliers and equipment maintenance companies. We can support customization based on:
Cylinder bore
Rod diameter
Stroke length
Retracted length
Working pressure
Mounting method
Vehicle model
Load capacity
Surface treatment
Seal system
OEM logo and packaging
If you need a replacement small sleeve cylinder or a new cylinder design for OEM equipment, our engineering team can provide technical support according to your application requirements.
Why Choose Our Small Sleeve Cylinders
Professional Hydraulic Cylinder Manufacturer
With extensive manufacturing experience, we provide:
Reliable Quality Assurance
Each compact hydraulic sleeve cylinder undergoes rigorous testing including:
pressure testing
leakage testing
dimensional inspection
durability testing
This ensures consistent performance for global industrial customers.
Global Supply Capability
We support international customers with:
Our small sleeve cylinders are supplied to machinery manufacturers and hydraulic distributors worldwide.
The Small Sleeve Cylinders offer an ideal solution for compact hydraulic systems requiring reliable performance and efficient power transmission. With durable construction, precision sealing technology, and flexible customization options, these compact sleeve hydraulic cylinders are widely used across industrial machinery, automation systems, and construction equipment.
If you are looking for a small sleeve cylinders manufacturer or supplier, contact us to get technical drawings, quotations, and customized solutions.
