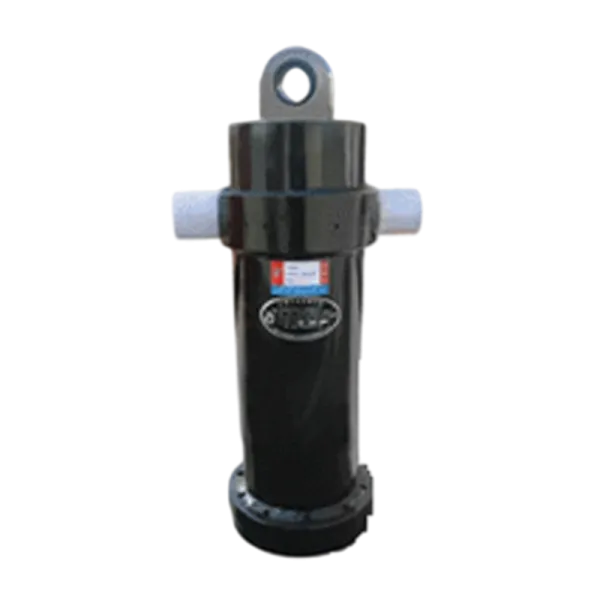

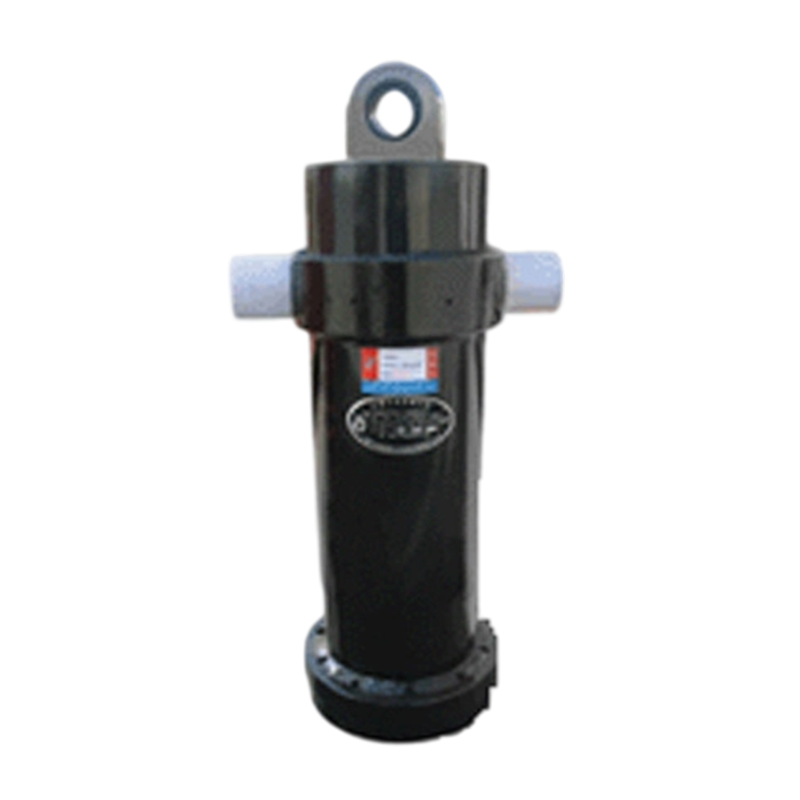

Small Sleeve Cylinders TG125/130 Series

Jiaheng TG125/130 series small sleeve cylinder is a hydraulic cylinder designed for heavy-load lifting scenarios with limited space. It adopts a compact multi-stage sleeve structure and is mainly used in: automobile maintenance (lifts, chassis repairs); industrial production lines (mold ejection, equipment positioning); construction machinery (small excavator boom adjustment); special equipment (stage machinery, spacecraft support).

Next Product Inquire Now

Product Details

Function

Heavy load lifting/pushing in extreme space constraints

Specifications

Cylinder diameter range 95mm~125mm

Rod diameter range 72mm~129mm

Stroke ≥ 820mm

Suitable for container lengths of 1800-5000mm

Thrust

Maximum 2084KN

Features

1. Compact design

Lightweight structure and small size, suitable for installation environments with limited space. It adopts a multi-stage sleeve structure, with a short length after contraction and a large extension stroke.

2. High-pressure performance

The working pressure range is wide and can adapt to high-intensity load requirements. The sealing performance is excellent and wear-resistant seals are used to reduce the risk of leakage.

3. Material and technology

The cylinder body is made of high-strength alloy steel, which is precision machined and heat-treated, and is corrosion-resistant and impact-resistant. The surface is hard chrome-plated to improve wear resistance and service life.

4. Intelligent adaptation & easy maintenance

Key components of the oil cylinder (such as seal group and guide sleeve) adopt standardized design, which supports quick replacement and reduces downtime. It provides a variety of installation methods to match different brands of mining vehicles.
