Truck Cylinders

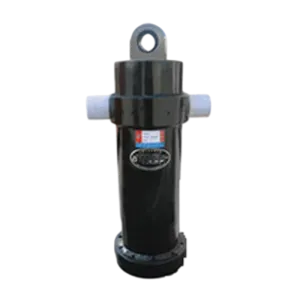

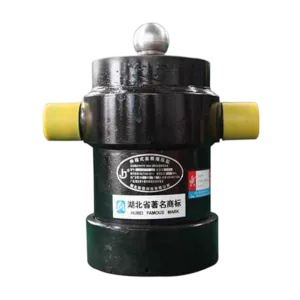

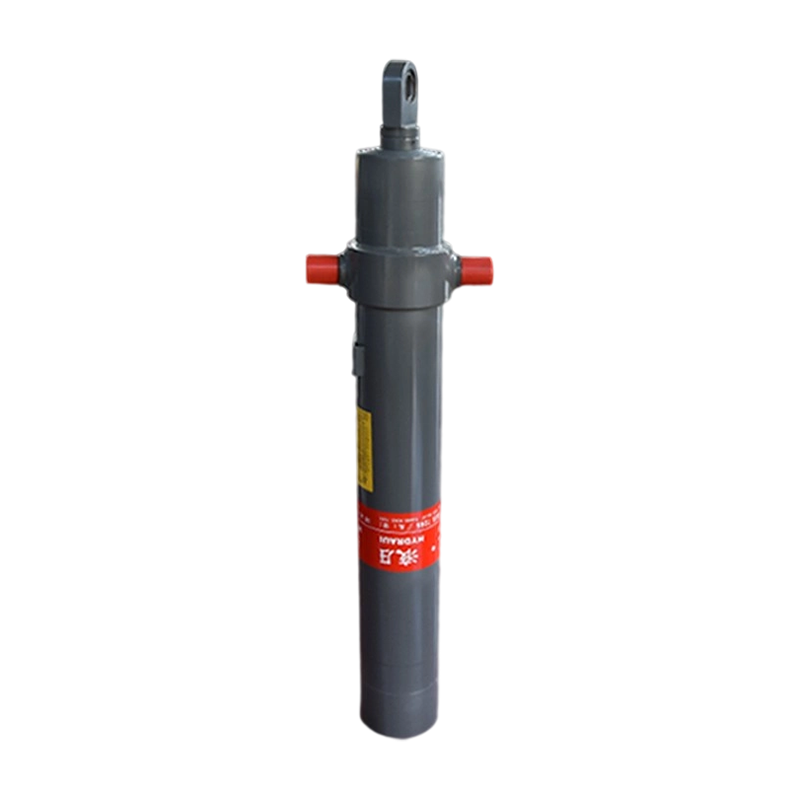

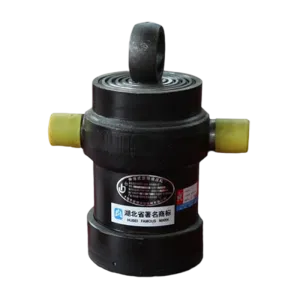

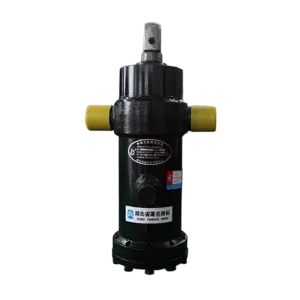

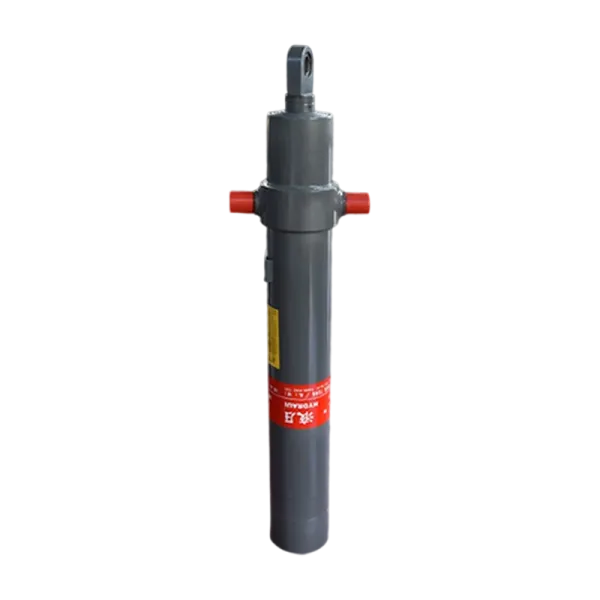

Jiaheng hydraulic Truck cylinder is specially designed for crane equipment, with strong thrust, multi-stage telescopic structure, compact enclosure height, suitable for various types of lifting machinery, and provides a variety of models to choose from. It supports customized services, and the size and configuration can be adjusted according to needs. It is widely used in construction, ports, logistics and other fields, as well as in various types of crane equipment, such as truck mounted cranes, truck cranes, tower cranes, port cranes, etc., to help efficient lifting operations.

Next Product Inquire Now

Product Details

Function

Control the lifting, extension and luffing of the crane boom

Specifications

Cylinder diameter range 100mm~220mm

Thrust

Maximum 600KN

Features

1. High-strength structural design

The cylinder is forged with high-strength alloy steel and processed by precision cold drawing or honing to ensure high pressure resistance and impact resistance.

2. Precision sealing and anti-leakage technology

Imported seals, anti-leakage, suitable for harsh working conditions.

3. Efficient performance and stability

Precise control, combined with a high-precision hydraulic system, enables the boom to be raised and lowered smoothly, accurately positioned, and avoids load shaking.

4. Durability and maintenance convenience

Anti-side load design, thickened guide sleeve and reinforced bearings to reduce damage to the cylinder caused by eccentric load.

5. Customized service

Flexible size adaptation: cylinder diameter, stroke, and installation method can all be customized as needed to solve special working conditions.
