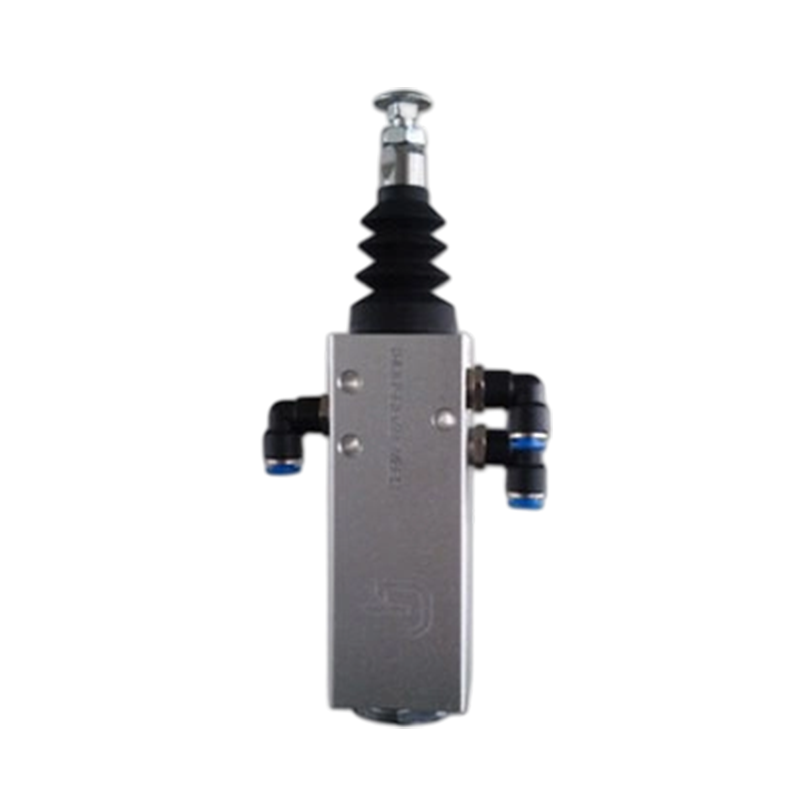

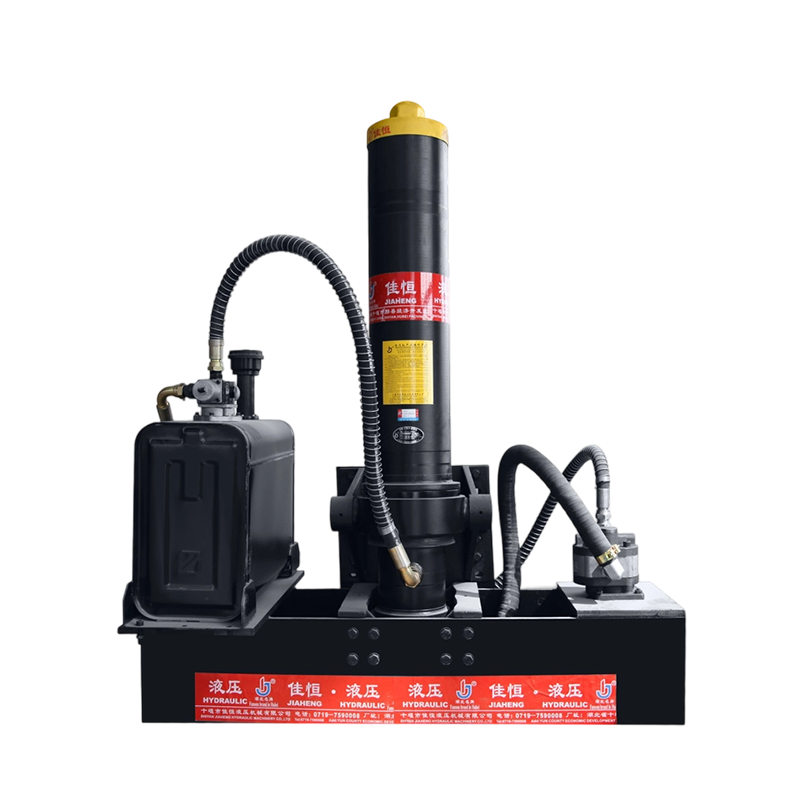

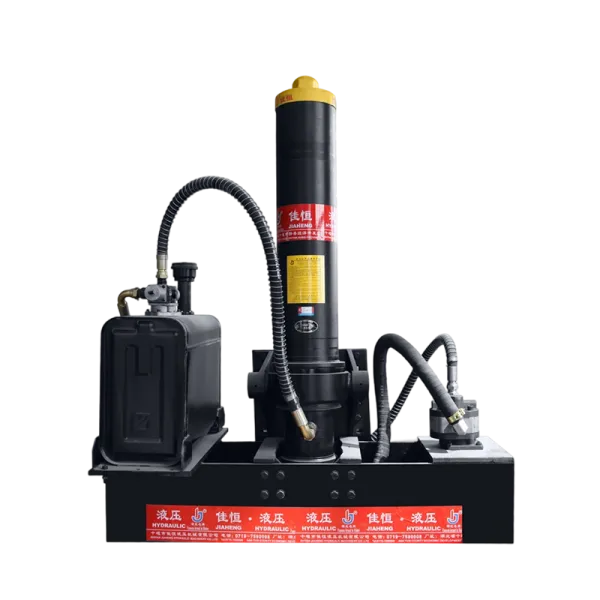

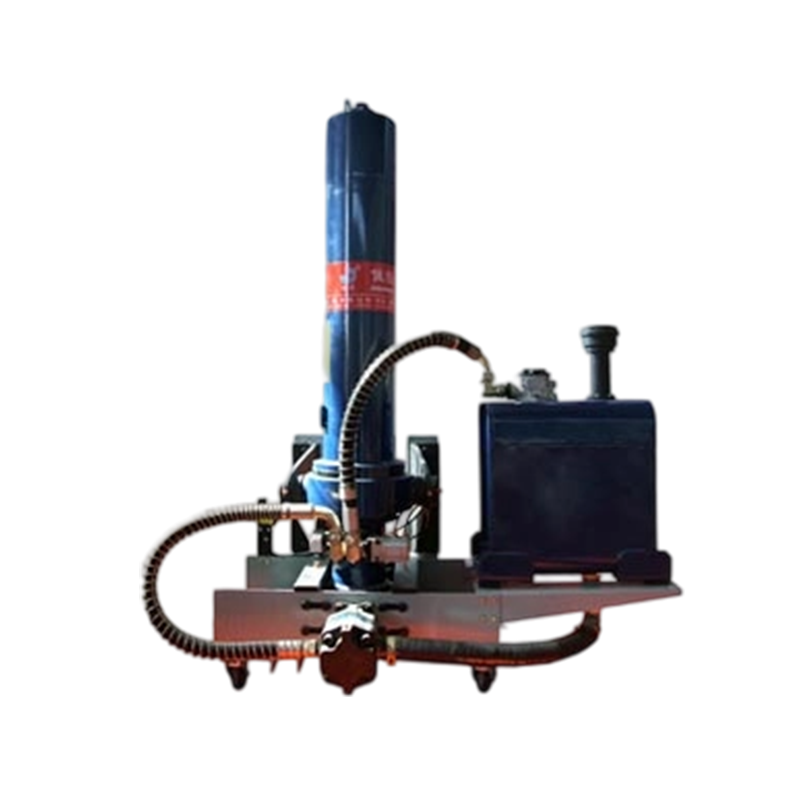

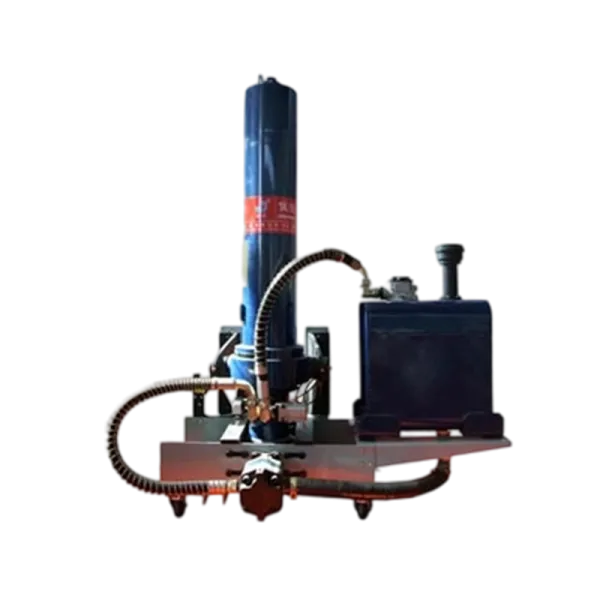

What Is a Hydraulic Limit Switch Valve?
A hydraulic limit switch valve is a control component used in hydraulic systems to detect the position of a moving actuator (such as a cylinder) and automatically trigger switching or stopping functions.
It is widely used to:
Prevent over-travel of hydraulic cylinders
Improve system safety
Enable automatic control sequences
Protect mechanical structures from damage
Technical Advantages and Features
(1) Double limit mechanism
Mechanical hard limit: Built in adjustable collision block structure, limit error ≤ ± 0.3 mm, can withstand 5000N impact force (such as injection molding machine mold closing limit);
Hydraulic soft limit: The pressure sensing valve core automatically releases pressure when overtravel, with a response time of ≤ 15 ms to avoid rigid impact.
(2) High precision position control
Adopting magnetostrictive displacement sensors (accuracy ± 0.1 mm), combined with electro-hydraulic proportional valves to achieve closed-loop control, with a repeat positioning accuracy of ≤± 0.5 mm (applicable to machine tool worktable limit);
The collision block adjustment range of the mechanically triggered limit valve is 0-100 mm, suitable for different stroke requirements.
(3) Anti impact and long-life design
The Hydraulic Cylinder Limit Switch core is made of 27SiMn alloy and plated with hard chromium (thickness 20 μ m), with a resistance to impact of ≥ 500000 times (triggered 1000 times a day for 14 years);
The sealing system adopts a polyurethane+metal skeleton composite structure, with a leakage rate of ≤ 3 drops/minute, suitable for high-frequency action scenarios.
(4) Intelligent integration and monitoring
Integrated CANopen bus interface, real-time upload of limit position and pressure data, triggering sound and light alarms in case of abnormalities (response time ≤ 50 ms);
Support remote setting of limit points (through HMI human-machine interface), adapted to the needs of fast switching between multiple working conditions.
(5) Full environmental adaptability
Temperature resistance -40 ℃~+80 ℃, response time ≤ 20 ms in -20 ℃ environment;
Anti vibration performance up to 50Hz, 30g acceleration (ISO 16750 standard), suitable for bumpy construction machinery
How Hydraulic Limit Switch Valve Works
The valve operates based on mechanical or hydraulic triggering:
Hydraulic cylinder reaches preset position
Mechanical plunger or pressure signal activates valve
Valve switches hydraulic flow direction or stops flow
System executes safety or control action
This ensures precise motion control and automation reliability
Hydraulic Limit Switch Applications
Excavators
Loaders
Bulldozers
Industrial Equipment
Press machines
Automation systems
Hydraulic lines
Heavy Vehicles
Dump trucks
Lifting systems
Manufacturing Systems
CNC machinery
Production automation
Hydraulic Limit Switch Valve vs Standard Hydraulic Valve
| Feature | Limit Switch Valve | Standard Valve |
|---|
| Position Control | ✔ Yes | ✘ No |
| Safety Function | High | Low |
| Automation Support | Strong | Limited |
| Precision | High | Medium |
Types of Limit Switches For Hydraulic Cylinder
Mechanical Limit Switch Valve
Hydraulic Pilot Limit Valve
Adjustable Limit Switch Valve
Why Choose Our Hydraulic Limit Switch Valve
Industrial Manufacturing Expertise
Precision machining ensures stable performance.
Strict Quality Control
Each valve is tested for pressure and switching accuracy.
Global Supply Capability
Export-ready for construction and industrial markets.
OEM & Custom Support
Custom pressure settings
Custom mounting design
Branding & labeling
Quality Assurance
100% pressure testing
Leakage inspection
Switching accuracy test
Fatigue cycle testing
Looking for stable and precise hydraulic limit switch valves? Contact Us Today!
FAQ
1. What is a hydraulic limit switch valve used for?
It is used to control actuator position and ensure hydraulic system safety.
2. Where is it commonly used?
Construction machinery, industrial automation, and hydraulic systems.
3. Can it be customized?
Yes, we provide OEM customization including pressure and mounting type.
4. What is the working pressure range?
Typically up to 31.5 MPa depending on model.
5. How does it improve safety?
It prevents over-travel and mechanical damage in hydraulic systems.
