Dump trucks have a long history in China’s road transportation. After years of iterative upgrades targeting structural weaknesses, multiple derivative models have been developed.
Despite consistent core lifting principles, dump cylinders have evolved into diverse designs to accommodate various operating conditions and load capacities.
This article systematically dissects the core structures of hydraulic lifting cylinders for dump trucks.
1 Classification of Hydraulic lifting Cylinders

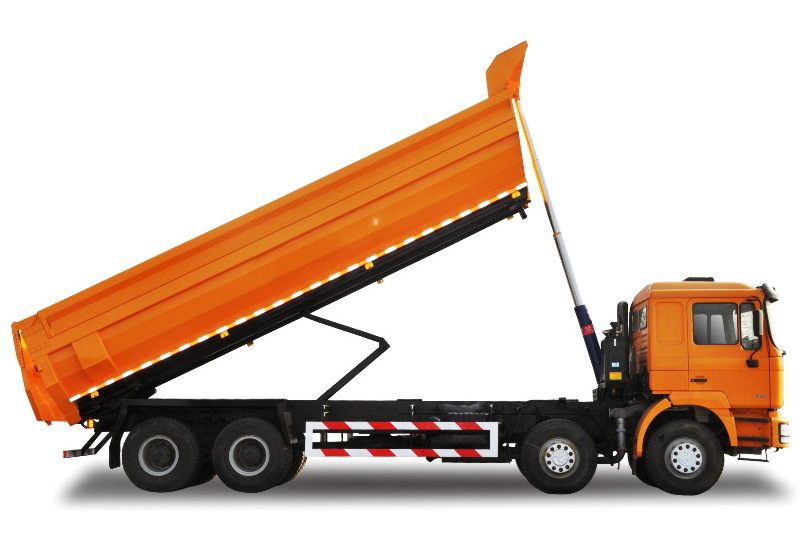

1.1 Front-Mounted Hydraulic Cylinders (Front Lift Design)
Vehicles fitted with front-mounted hydraulic cylinders are commonly referred to as front-lift dump trucks, predominantly used for heavy-load haulage.
This single large-diameter cylinder leverages the principle of force-saving leverage: the forward mounting position reduces the load borne by the cylinder under identical lifting weight.
Advantages
Reduced impact stress on cargo bed mounting seats and chassis frame bases, enabling larger load capacity.
Superior lifting stability and high lateral rigidity of the cargo bed during unloading on rough terrain.
Disadvantages
Longer piston stroke restricts minimum site clearance for unloading; longer cylinder length is required to lift the bed to the same height compared to middle-mounted cylinders.
Hydraulic oil tank is installed behind the cab adjacent to the cylinder, occupying valuable chassis space. This creates layout conflicts with water tanks required for mountain transit, requiring integrated structural compromises.
Higher dead weight; lightweight optimization is limited to thinner side and tail panels of the cargo bed.
Applicable Models
Suited for heavy-duty vehicles with payloads of 25–30 tons and above, including 8×4 rear eight-wheelers, 6×4 front four rear eight-wheelers.
Thickened steel plates reinforce the front cargo bed to form the critical leverage fulcrum, with zero tolerance for substandard fabrication.

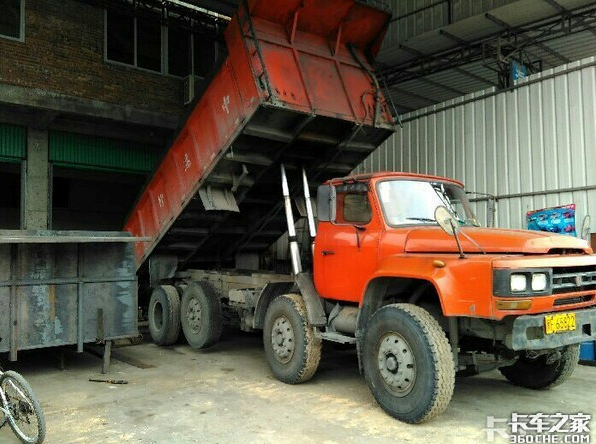

1.2 Middle-Mounted Hydraulic Cylinders
Early single-axle coal haulers, 6×2 and 6×4 trucks widely adopted middle-mounted cylinders for payloads ranging 20–30 tons.
This category splits into twin middle cylinders (dual-lift design) and horizontal single cylinders.
Lower overall gravity center enhances lifting stability, effectively mitigating cargo bed tipping risks on uneven construction and quarry sites.
Mounted within the chassis frame to utilize vacant frame space, distributing weight evenly across the frame and improving road handling stability.
Drawback: Low ground clearance under the cylinder base; prone to grounding resistance when driving over muddy or uneven construction terrain.

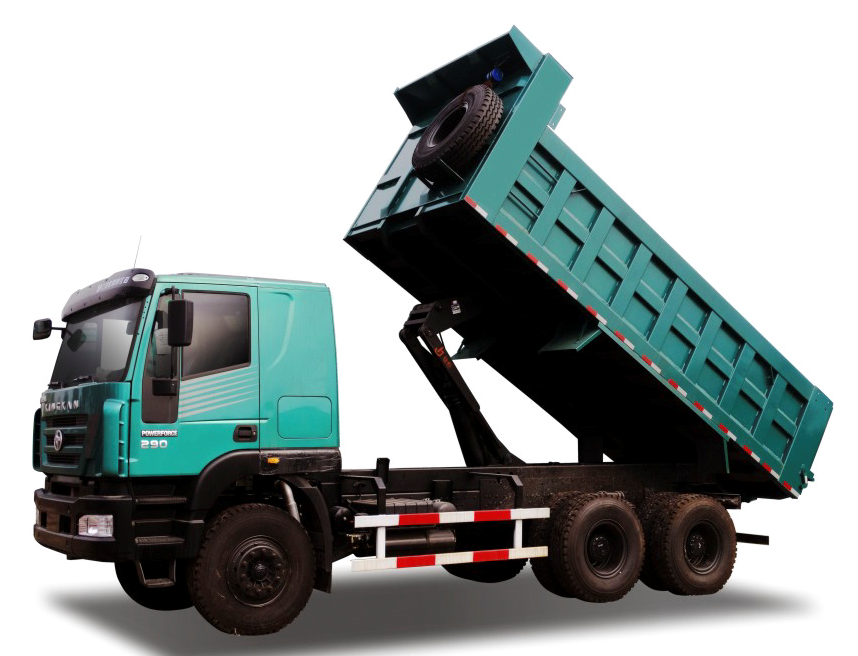

1.3 Horizontal Single Hydraulic Cylinders
Horizontal single cylinders feature simple, cost-effective construction with reliable durability, fitted to light-to-medium engineering dump trucks (single-axle, 6×2) with 15–25 ton payloads.
Named for its retracted horizontal position inside the chassis frame, it saves more undercarriage space than twin middle cylinders.
However, it is outperformed by twin middle cylinders in load-bearing capacity, and falls short of front-mounted cylinders in lifting force and service life, limiting its later market application.
Combined Hybrid Cylinder Systems
Early ultra-heavy "100-ton haulers" adopted combined hydraulic cylinder assemblies integrating front, middle, and horizontal single cylinders to maximize lifting force and operational smoothness.
This specialized configuration is rarely seen on standard road dump trucks.

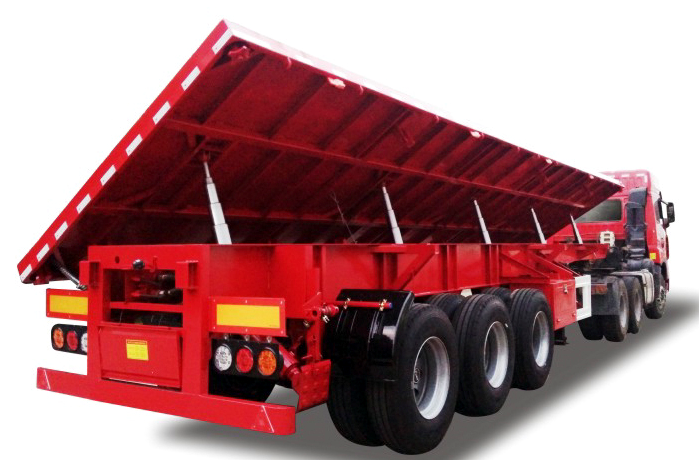

1.4 Side-Tipping Hydraulic Cylinders
After regulatory restrictions on rear-tipping flatbed semi-trailers, side-tipping semi-trailers gained widespread adoption in Fujian and southern China for sand, coal,
and clinker transport due to superior structural stability.
Long rear-tipping semi-trailers require ultra-long thin cylinders (over 1.7m) to achieve sufficient tilt angles, which cannot withstand lateral deflection and easily collapse
under uneven cargo loads. By contrast, side-tipping cylinders are short, compact jack-style units arranged in a row under the cargo bed:
High structural rigidity for 11.5m/13m long semi-trailers.
Movable rear outriggers prevent tire burial during unloading, enabling lateral bed shifting to clear stockpiles and improve maneuverability on narrow roads.
2 Routine Maintenance of Hydraulic Dump Cylinders
Dump trucks operate under harsh terrain and heavy load conditions; regular maintenance of hydraulic lifting systems is critical to extend service life and eliminate safety hazards.
2.1 Hydraulic Oil Management
Two standard hydraulic oil grades apply:
Grade 32 low-viscosity oil: Recommended for cold winter conditions to maintain fluidity.
Grade 46 high-viscosity oil: Used in hot summers; suitable for year-round operation in southern regions.
Critical Rule: Never mix hydraulic oils of different brands or viscosity grades.
2.2 System Cleanliness & Pipeline Inspection
Impurities in hydraulic oil damage valve assemblies and cylinder sealing rings via circulation. Key inspection items:
1. Replace hydraulic oil and filters per scheduled cycles to preserve oil cleanliness.
2. Regularly inspect hydraulic hoses and joints for cracking, seepage, or aging; replace damaged piping immediately (high internal pressure during lifting may burst defective hoses).
3. Install protective sleeves on cylinder barrels for sand and gravel haulers to prevent particulate contamination of piston rods.
4. Check piston rod surfaces for abnormal scratches or abrasion; repair, calibrate or replace defective rods at professional service shops to avoid lifting efficiency loss and safety risks.
2.3 Standard Operating Specifications
1. Avoid lifting the cargo bed on severely uneven ground; forced lifting under excessive tilt risks vehicle rollover.
2. Fully unlock tailgate latches before lifting to prevent cargo accumulation that overloads the hydraulic system and causes dangerous nose-lift ("nose-heavy") instability.
3. Confirm the cargo bed is fully lowered before driving; traveling with an elevated bed risks collisions with height-restricted structures.
4. While empty trucks may lift the bed temporarily to increase rear-wheel traction on slippery construction sites, always assess surrounding clearance first.
3 Remarks
Hydraulic lifting cylinder technology has matured after decades of development, yet failures still trigger serious traffic accidents during fully loaded lifting operations.
Operators are advised to select well-known brand cylinders (such as Jiaheng brand) with verified reliability and accessible after-sales support.
Matching cylinder type to actual payload and operating conditions optimizes equipment performance and reduces long-term operational costs.
