Introduction: Understanding Excavator Hydraulic Cylinder Needs
If you’re searching for an Excavator Hydraulic Cylinders Supplier, you’re likely facing issues related to performance, maintenance, or replacement of hydraulic cylinders in your excavation equipment. Users often report challenges such as decreased lifting power, hydraulic leaks, or increased downtime that not only slows work progress but also raises operational costs. A common scenario is when a construction project experiences delays due to faulty hydraulic systems, leading to financial losses. The solutions include sourcing high-quality hydraulic cylinders from reputable suppliers like Jiaheng, which focus on durability, precision manufacturing, and responsive customer service.
Required Preparation: Materials and Tools for Manufacturing Excavator Hydraulic Cylinders
To understand how excavator hydraulic cylinders are manufactured, let\'s outline the necessary materials, tools, and prerequisites:
- Materials: High-strength steel, reinforced seals, hydraulic fluid.
- Tools: CNC machines, welding equipment, hydraulic jacks, testing machines.
- Prerequisites: Adequate engineering knowledge, safety gear, and a well-ventilated workspace.

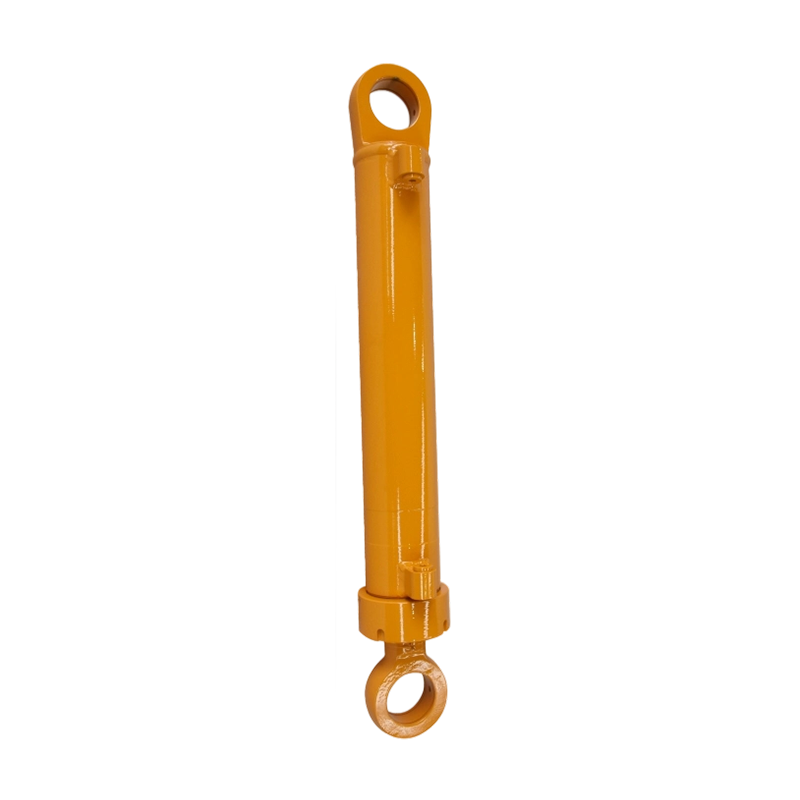

Step-by-Step Guidance: Manufacturing Process of Excavator Hydraulic Cylinders
-
Design Specifications: Start by drafting design specifications that match OEM requirements. Ensure that the dimensions adhere strictly to the engineering standards required for excavator operation.
-
Material Selection: Choose high-strength steel with a tensile strength of at least 580 MPa to withstand heavy loads in harsh conditions.
-
CNC Machining: Use CNC machines to cut the steel to precise dimensions. The tolerances should be within +/- 0.01 mm to ensure fit and function.
-
Welding: Weld the components together using MIG or TIG welding techniques. Ensure that the welded joints can support at least 75% of the material’s tensile strength for safety.
-
Surface Treatment: Apply a surface treatment such as hard anodizing to enhance corrosion resistance, which can improve lifespan by up to 50%.
-
Seal Installation: Install reinforced seals that conform to the ISO 3320 specifications to prevent hydraulic fluid leaks, which can cause substantial operational issues.
-
Hydraulic Testing: Perform hydraulic tests to ensure each cylinder can handle pressures up to 250 bar without any failure.
-
Final Inspection: Check each cylinder for dimensional accuracy, surface integrity, and operational efficiency. Inspecting each unit can reduce the failure rate during operation by 90%.
Common Errors and Solutions in Excavator Hydraulic Cylinder Manufacturing
During the manufacturing process, several common errors may occur:
- Incorrect Dimensions: Detailed quality checks and the use of advanced CNC technology can prevent dimensional errors. Always compare against CAD designs.
- Poor Weld Quality: Implement training programs for welders to enhance skills. Utilize X-ray inspection techniques to identify any issues in welds.
- Seal Failure: Ensure quality control on seal materials, and implement regular maintenance schedules to inspect seals in used hydraulic cylinders.
Summary and Suggestions
Understanding the manufacturing process of excavator hydraulic cylinders can significantly help in enhancing performance and longevity. To lower the risk of issues, prioritize sourcing materials from reliable suppliers like Jiaheng, who employ stringent QA processes. Regular maintenance and timely replacement of hydraulic components will save time and money in the long run.
FAQ about Excavator Hydraulic Cylinders
1. What is the average lifespan of an excavator hydraulic cylinder?
The average lifespan is typically between 5 to 10 years, depending on usage, maintenance, and the environment it operates in.
2. How can I tell if my hydraulic cylinder is failing?
Symptoms of failure can include visible leaks, decreased lift capacity, or excessive noise during operation. Regular inspections can help detect these issues early.
3. How often should I perform maintenance on hydraulic cylinders?
It\'s advisable to conduct a thorough inspection every 1,000 operating hours or annually, whichever comes first. Regular maintenance can extend cylinder lifespan significantly.
