What is a Telescopic Hydraulic Cylinder?
Definition and Functionality

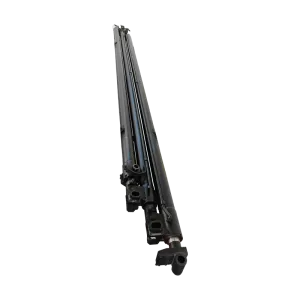

A telescopic hydraulic cylinder is a type of actuator that can extend and retract its length, using multiple nested cylinder sections. This design allows for a compact retracted size while providing significant extension when needed, making it ideal for applications requiring long strokes with minimal space.
Common Applications
Dump trucks
Construction equipment
Mobile equipment lifts
Characteristics of a Standard Hydraulic Cylinder
Definition and Functionality
A standard hydraulic cylinder consists of a single stage that moves in a linear fashion. It relies on hydraulic pressure to push or pull a rod, commonly used for lifting, pushing, or pulling heavy loads in various industrial applications.
Common Applications
Key Differences Between Telescopic and Standard Hydraulic Cylinders
Size and Extension Capabilities
Telescopic cylinders can extend their lengths multiple times beyond their retracted size, while standard hydraulic cylinders have a fixed stroke length. This makes telescopic cylinders more suited for applications requiring a significant lift in a compact space.
Design Complexity
Telescopic cylinders are more complex in design due to multiple stages, which can complicate maintenance and repairs. Standard cylinders are simpler, making them easier to maintain.
Load Capacity
Telescopic cylinders generally have a higher load capacity in certain applications, mainly due to their mechanical advantage in extending the load. Standard cylinders are limited by their stroke and power delivery.
Step-by-Step Guide to Choosing the Right Cylinder for Your Needs
Step 1: Assess Your Application Requirements
Determine the specific needs of your application including load capacity, space constraints, and extension requirements.
Step 2: Determine the Fluid Power Requirements
Calculate the hydraulic pressure and flow rate that will be needed to operate the cylinder effectively within your machinery.
Step 3: Evaluate the Operating Environment
Consider factors such as temperature, exposure to elements, and the presence of contaminants that could affect performance.
Step 4: Review Material and Build Quality
Choose a cylinder constructed from durable materials that can withstand the rigors of your specific operational conditions.
Step 5: Consult with Experts
Engage with hydraulic specialists or manufacturers like Jiaheng to ensure you have the appropriate specifications and designs for your use case.
List of Required Tools for Installation
Common Mistakes to Avoid When Using Telescopic Hydraulic Cylinders
Improper Installation
Ensure that the cylinder is installed in a manner that allows for proper functionality. Misalignment can lead to premature wear or failure.
Neglecting Maintenance
Regular inspections and maintenance can prevent seal failures or leaks, which are common issues with both types of cylinders.
Exceeding Load Limits
Always adhere to the specified load limits to avoid damaging the cylinder’s integrity or causing operational failures.
In conclusion, understanding the differences between a telescopic hydraulic cylinder and a standard hydraulic cylinder is essential for making informed decisions in applications requiring hydraulic power. For high-quality products and expert advice, look to Jiaheng.
