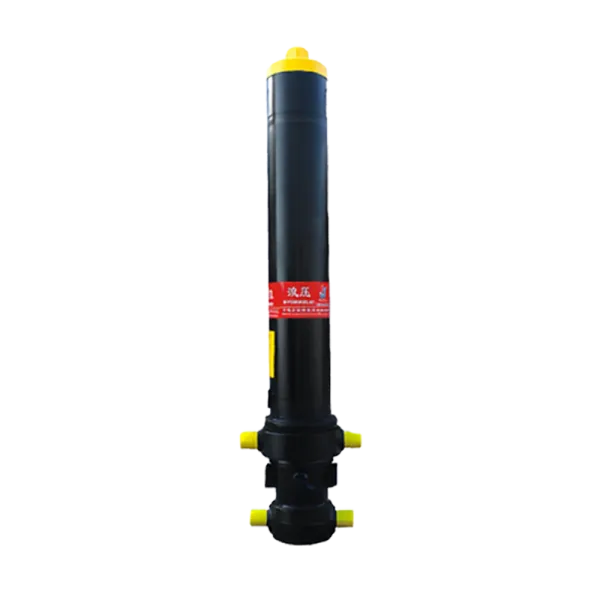

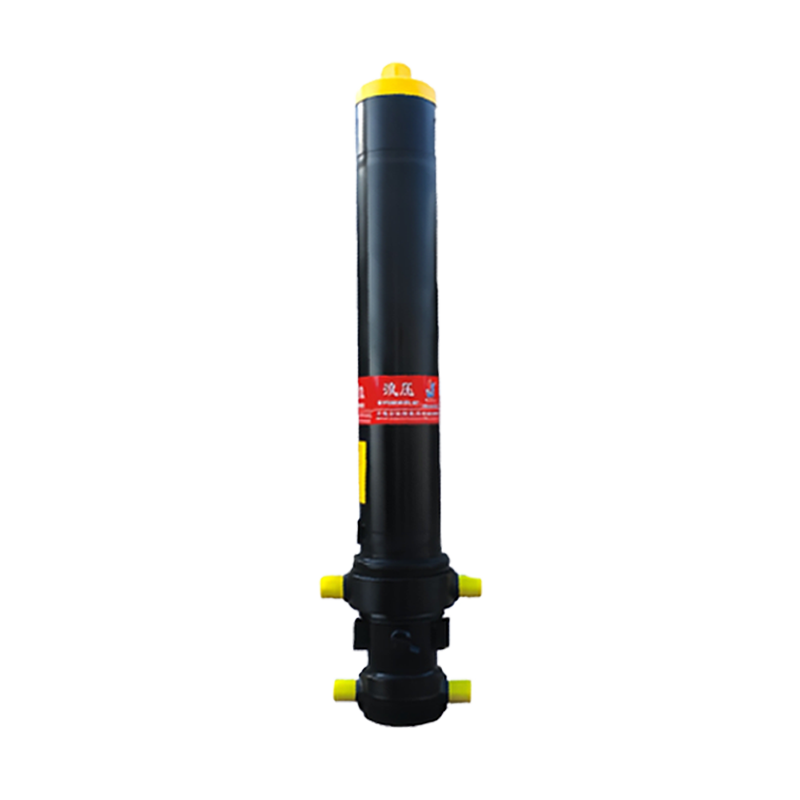

Front End Cylinders TG Series

The Jiaheng Hydraulic Q series front hydraulic cylinder is designed specifically for the front top lifting system of highway dump trucks and logistics transportation vehicles, suitable for frequent loading and unloading of goods. The cylinder is installed at the front of the carriage to push the front section of the carriage to tilt and unload, which is suitable for the need of stable center of gravity of road vehicles. High-strength steel is used to reduce the dead weight while ensuring the load-bearing capacity (such as single-stage or double-stage cylinder design).

Inquire Now

Product Details

Function

Hydraulic push to achieve forward unloading of cargo box

Specifications

Cylinder diameter range 80mm~180mm

Stroke ≥ 1000mm

Suitable for container lengths of 3000-8000mm

Thrust

Maximum 226KN

Features

1. Longer service life

By optimizing the structural design and reducing the cylinder diameter, increasing the limit buffer design, reducing the system pressure fluctuation and pressure shock, and extending the service life of each component of the lifting hydraulic system!

2. Stronger stability

Jiaheng highway heavy-duty series cylinders are designed with stability optimization to improve the stability when the long box is lifted too high and reduce the risk of rollover!

3. Greater lifting force

Jiaheng highway heavy-duty series cylinders have a 15%~20% higher lifting force than other products in the same series. Greater lifting force, more loading brings more benefits! Lighter deadweight, greater lifting force, and lighter.
