Custom Hydraulic Cylinders

What is a Custom Hydraulic Cylinder?

A custom hydraulic cylinder is a hydraulic cylinder designed to meet the specific operational requirements of your industrial application. Unlike standard off-the-shelf products, our custom cylinders are designed with flexibility, environmental compatibility, and brand recognition in mind.

What can Jiaheng do for you regarding custom hydraulic cylinders?

Custom Hydraulic Cylinders to Your Needs: In today's rapidly changing industrial environment, one-size-fits-all solutions are no longer suitable. Jiaheng offers custom hydraulic cylinder solutions designed to address the unique challenges your operations face. Unlike standard cylinders with pre-defined specifications, each component of a custom hydraulic cylinder is meticulously designed to precisely meet your application requirements.

Here, we can customize the technology according to your design needs, such as:

• Dimensions

• Working Pressure

• Stroke Length

• Installation Method

• Connection System

We can also customize the process according to your usage scenario, such as:

• Corrosion Resistance

• High Temperature Resistance

• Low Temperature Resistance

• Dustproof

• Aging Resistance

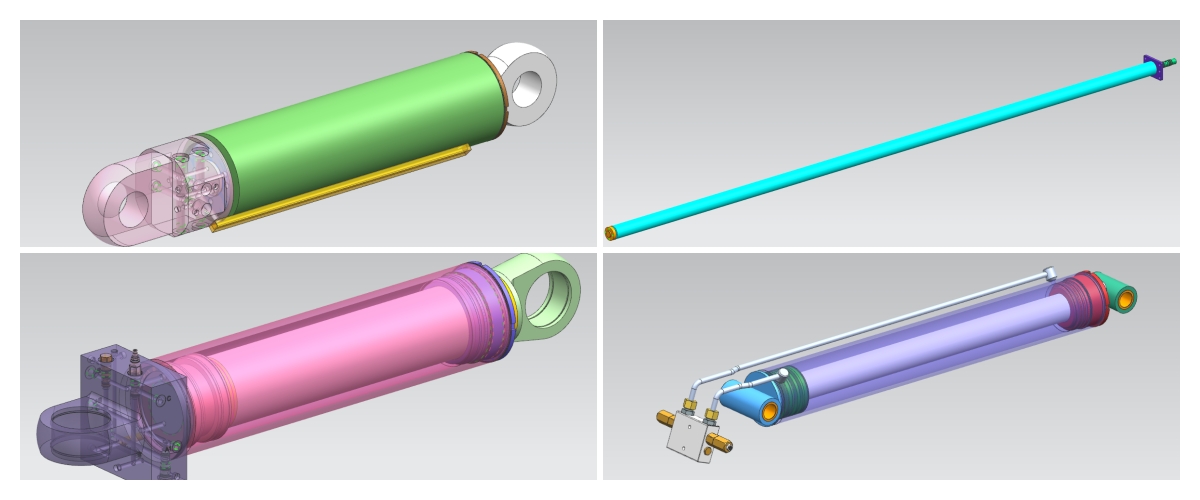

Custom Made Hydraulic Cylinders

We can also tailor-make cylinders specifically for your brand's promotion. Furthermore, we can customize integrated hydraulic system solutions according to your overall hydraulic system requirements!

Start customizing your hydraulic cylinders now!

1) A clear design drawing

2) If you don't have one, please click here to download it, fill out the form, and send it to us!

Hydraulic Cylinder New Product Development and Design Information Input Checklist.pdf

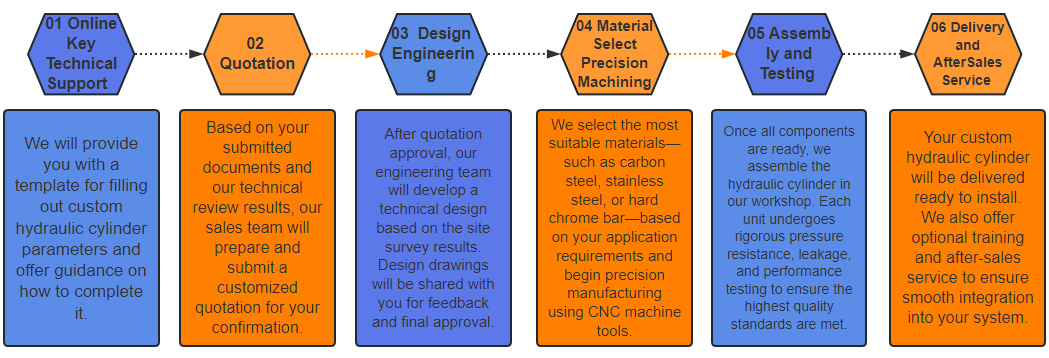

What are the steps involved in customizing hydraulic cylinders?

From planning to delivery, we work closely with you to ensure your goals are met at every stage.

1) Online Key Technical Support: We will provide you with a template for filling out Bespoke Hydraulic Cylinders parameters and offer guidance on how to complete it.

2) Quotation: Based on your submitted documents and our technical review results, our sales team will prepare and submit a customized quotation for your confirmation.

3) Design and Engineering: After quotation approval, our engineering team will develop a technical design based on the site survey results. Design drawings will be shared with you for feedback and final approval.

4) Material Selection and Precision Machining: We select the most suitable materials—such as carbon steel, stainless steel, or hard chrome bar—based on your application requirements and begin precision manufacturing using CNC machine tools.

5) Assembly and Testing: Once all components are ready, we assemble the hydraulic cylinder in our workshop. Each unit undergoes rigorous pressure resistance, leakage, and performance testing to ensure the highest quality standards are met.

6) Delivery and After-Sales Service Support: Your custom hydraulic cylinder will be delivered ready to install. We also offer optional training and after-sales service to ensure smooth integration into your system.

Why does Jiaheng have the capability to customize hydraulic cylinders?

1) A professional hydraulic cylinder R&D team of 60+ people.

2) The strength and experience of joint R&D with Zoomlion, Foton LESA, and Sinotruk.

3) 11 invention patents, 76 utility model patents, 1 design patent, 6 software copyrights, and 11 provincial-level major scientific research achievements.

4) Over 100 automated production and testing equipment.

Jiaheng hydraulic cylinder

Hubei Jiaheng Technology Co., Ltd.'s customized cylinders occupy an important position in the industrial field due to their diversified classification, wide applicability and excellent performance.

From the classification characteristics, its Hydro Custom Cylinders products cover a variety of structural types such as single-acting, double-acting, multi-stage telescopic, and can be specially designed for different fields such as construction machinery, mining equipment, and ship hydraulics to meet the diverse working conditions such as high pressure and heavy loads, and high-frequency movements.

The application scenarios cover a wide range, including key equipment such as excavator leg cylinders, crane boom systems, and shield machine propulsion devices. Especially in complex environments, the stability and reliability are highly recognized.

The core advantages are reflected in the selection of high-strength alloy materials, the guarantee of precision CNC processing technology, and the integrated innovation of intelligent sensing technology, combined with a strict ISO quality management system to ensure that the product life is more than 30% higher than the industry standard.

The production process adopts full-process digital control, and achieves micron-level precision control from forging to laser cladding surface treatment. It is equipped with a hydraulic pulse test bench and a fatigue life laboratory for full-dimensional testing.

Customized services cover the cylinder diameter range from 50mm to 800mm, support non-standard size design, corrosion-resistant coating customization, extreme temperature adaptability modification (-50℃ to 200℃) and installation of intelligent feedback system, providing a one-stop solution from conceptual design to after-sales maintenance, fully demonstrating the research and development concept of "defining products by working conditions".
